• Out-of-Stock

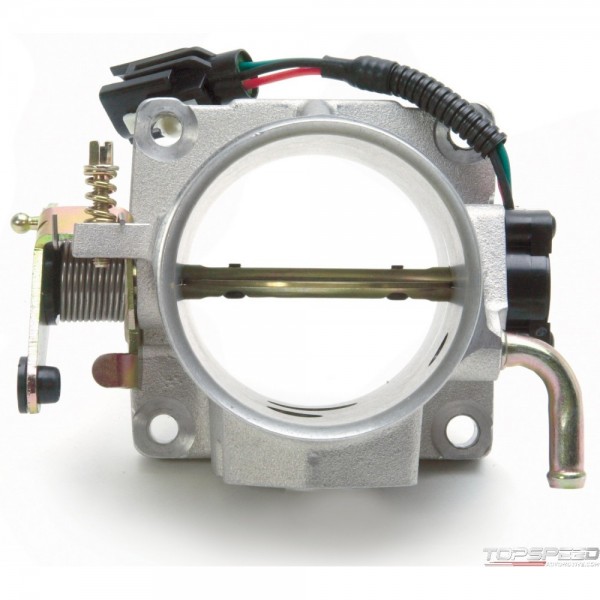

THROTTLE BODY, 70MM FORD 86-93 5.0L MUSTANG

Manufacturer: EDELBROCK
Part number: 3825
MPN: 3825
UPC: 085347038251
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

The Edelbrock PN: 3825 70mm throttle body is cast, machined and assembled by Edelbrock. The throttle body is assembled with a throttle position sensor. The customer re-uses their original idle air bypass solenoid. The throttle body requires the use of the 70mm EGR plate (PN: 3828). Both the throttle body and the EGR plate are covered by E.O. D-215-18. The 70mm combination is not recommended for stock applications. It fits our PN: 3821 manifold or Ford's GT-40 with no modifications. Satin Finish

Ford:Small-Block Windsor:302 (5.0L)

THROTTLE BODY, 70MM FORD 86-93 5.0L MUSTANG - Part number: EDL-3825 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 3825 - THROTTLE BODY, 70MM FORD 86-93 5.0L MUSTANG fuel-injection-throttle-body

Data sheet

Fuel System Type
Gas
Inlet Diameter
3.250 IN
Gasket Or Seal Included
Yes
Outlet Diameter
70.0 MM
Inlet Type
Single
Outlet Type
Single Blade
Bore Diameter
70.0 MM
CARB Executive Order Number
D-215-75
Fuel Injectors Included
No
Idle Air Control Motor Included
No
Throttle Position Sensor Included
Yes
Airflow Rate
750 2L
Fuel System Grade
All
Fuel System Injection Type
Port
Throttle Body Finish
Satin
Throttle Body Material
Aluminum
Throttle Body Spacer Color
Natural
Throttle Body Spacer Included
No
Throttle Body Type
Single Blade
Venturi Quantity
1

Package dimensions

Width: 6.10 inch
Height: 4.00 inch
Depth: 10.20 inch
Weight: 2.80 lb
