THROTTLE BODY, 65MM FORD 86-93 5.0L MUSTANG
Availability:
Out-of-Stock
Description

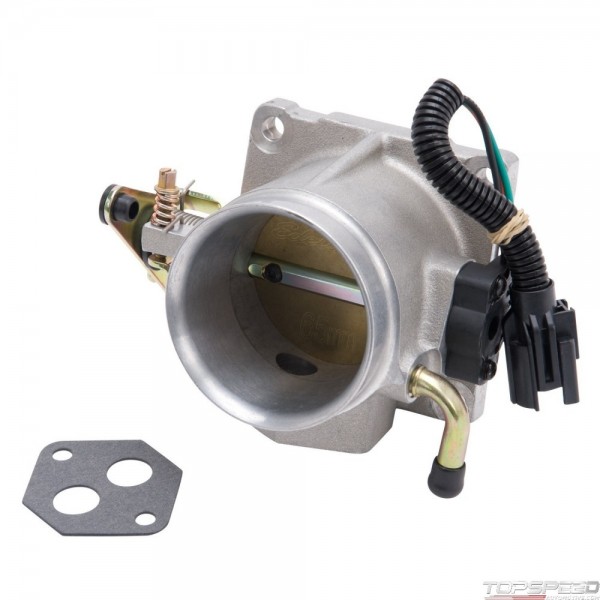

The Edelbrock PN: 3824 65mm throttle body is cast, machined, and assembled by Edelbrock. The throttle body includes a throttle position sensor. The customer re-uses their original idle air bypass solenoid. The throttle body requires the use of the 65mm EGR plate (PN: 3827). Both the throttle body and the EGR plate are covered by E.O. D-215-18. The 65mm combination fits stock applications, but gasket matching to a 65mm bore size is recommended for optimum results. It fits our PN: 3821 manifold or Ford's GT-40 with no modifications. Satin Finish
Ford:Small-Block Windsor:302 (5.0L)
Ford:Small-Block Windsor:302 (5.0L)
THROTTLE BODY, 65MM FORD 86-93 5.0L MUSTANG - Part number: EDL-3824 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 3824 - THROTTLE BODY, 65MM FORD 86-93 5.0L MUSTANG fuel-injection-throttle-body
Data sheet
- Fuel System Type
- Gas
- Inlet Diameter
- 3.250 IN
- Gasket Or Seal Included
- Yes
- Outlet Diameter
- 65.0 MM
- Inlet Type
- Single
- Outlet Type
- Single Blade
- Bore Diameter
- 65.0 MM
- CARB Executive Order Number
- D-215-75
- Fuel Injectors Included
- No
- Idle Air Control Motor Included
- No
- Throttle Position Sensor Included
- Yes
- Airflow Rate
- 650 2L
- Fuel System Grade
- All
- Fuel System Injection Type
- Port
- Throttle Body Finish
- Satin
- Throttle Body Material
- Aluminum
- Throttle Body Spacer Color
- Natural
- Throttle Body Spacer Included
- No
- Throttle Body Type
- Single Blade
- Venturi Quantity
- 1
Package dimensions
Width: 3.75 inch
Height: 5.75 inch
Depth: 9.00 inch
Weight: 2.85 lb
