XX 94-95 75MM THROTTLE BODY

Manufacturer: EDELBROCK
Part number: 3846
MPN: 3846
UPC: 085347038466
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

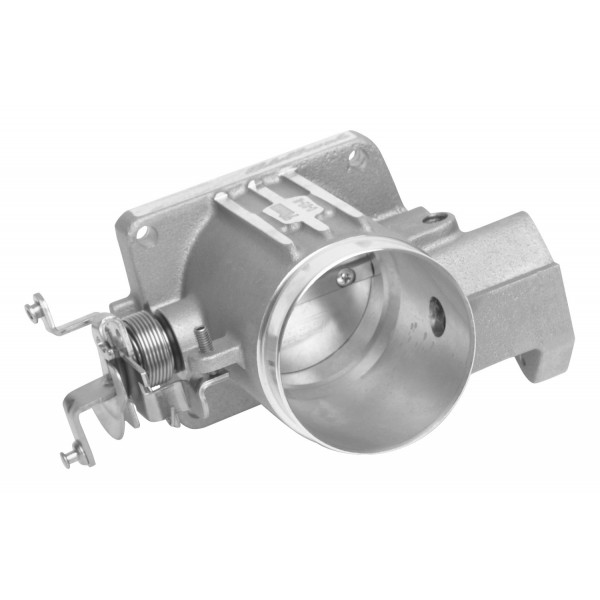

The Edelbrock PN: 3846 75mm throttle body for 1994-95 5.0L Mustangs is cast and machined by Edelbrock, and assembled using Edelbrock components. The customer re-uses their original idle air bypass solenoid. The throttle body is CARB approved. The 75mm size is intended for high performance Victor-level applications. Customers will need to use Throttle Body Adapter PN 3835 to use throttle body with Edelbrock manifolds. Includes TPS. Satin Finish.

Ford:Small-Block Windsor:302 (5.0L)

XX 94-95 75MM THROTTLE BODY - Part number: EDL-3846 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 3846 - XX 94-95 75MM THROTTLE BODY fuel-injection-throttle-body

Data sheet

Fuel System Type
Gas
Inlet Diameter
3.250 IN
Gasket Or Seal Included
Yes
Outlet Diameter
75.0 MM
Inlet Type
Single
Outlet Type
Single Blade
Bore Diameter
75.0 MM
CARB Executive Order Number
D-215-75
Fuel Injectors Included
No
Idle Air Control Motor Included
No
Throttle Position Sensor Included
Yes
Airflow Rate
800 2L
Fuel System Grade
All
Fuel System Injection Type
Port
Throttle Body Finish
Satin
Throttle Body Material
Aluminum
Throttle Body Spacer Color
Natural
Throttle Body Spacer Included
No
Throttle Body Type
Single Blade
Venturi Quantity
1

Package dimensions

Width: 3.75 inch
Height: 5.75 inch
Depth: 9.00 inch
Weight: 2.90 lb
