PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT SBC 1986/EARLIER 625 MAX HP 35 LbHr

Manufacturer: EDELBROCK
Part number: 35770
MPN: 35770
UPC: 085347357703
Availability:
£3,222.55
Tax included

Qty: 10, Delivery time: 8 working days

Description

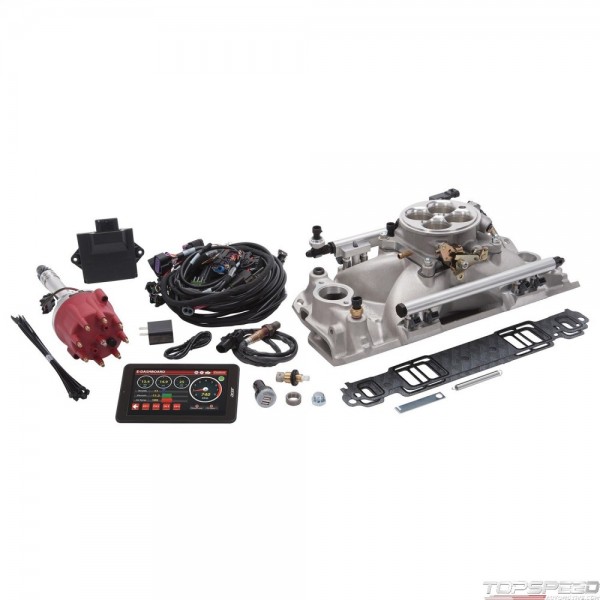

The Edelbrock part PN: 35770 Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP. with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don't have a compatible device, then we also offer kits that include a 7in. Android tablet with the E-Tuner 4 app pre-installed. , Multiple dash displays are included to allow you to monitor engine vitals with an Android smart phone or tablet., Pro-Flo 4 does not require laptop tuning.

Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT SBC 1986/EARLIER 625 MAX HP 35 LbHr - Part number: EDL-35770 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 35770 - PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT SBC 1986/EARLIER 625 MAX HP 35 LbHr fuel-injection-system

Data sheet

Engine Make/Size
Chevy Small Block (262-400)
Finish
Satin
Flange Type
4150
Cylinder Head Type
Standard
Fuel Rate
35 lbs./hr
Maximum Horsepower
550
Gasket Or Seal Included
Yes
Wiring Harness Included
Yes
Fuel Injector Type
35 lb/hr
System Type
Traditional 4150-Style Kit
Bore Diameter
1.75 in
Quantity
Kit
Distributor Cap Included
Yes
Idle Air Control Motor Included
Yes
Throttle Body Type
4 Barrel
Fuel Pressure Port
1/8-27 NPT
Manifold Height
4.58 in
Wire Harness Included
Yes

Package dimensions

Width: 24.00 inch
Height: 10.25 inch
Depth: 27.75 inch
Weight: 47.00 lb
