Description

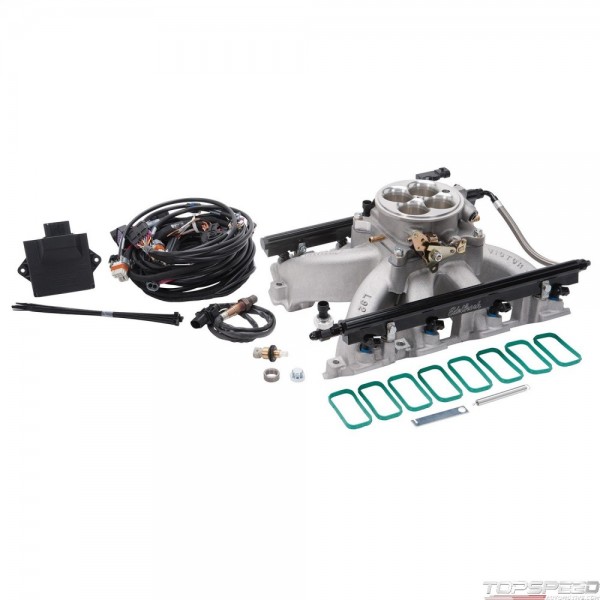

The Edelbrock part PN: 357500 Pro-Flo 4 Sequential Port EFI System for Chevrolet LS GEN IV engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish Victor Jr. rectangle port intake manifold and 42 Lb/Hr injectors capable of 675 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals and performance. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet., Please Note 'Kit 357500 DOES NOT include a 7in. Android tablet'. , If you don't have a compatible device, then we also offer kits that include a 7in. Android tablet with the E-Tuner 4 app installed. , Pro-Flo 4 does not require laptop tuning.
Chevrolet:Small-Block Gen IV L76:364 (6.0L),Chevrolet:Small-Block Gen IV L92:376 (6.2L),Chevrolet:Small-Block Gen IV L94:376 (6.2L),Chevrolet:Small-Block Gen IV L99:376 (6.2L),Chevrolet:Small-Block Gen IV L9H:376 (6.2L),Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT LS GEN IV VICTOR JR RECT PORT 675 H - Part number: EDL-357500 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 357500 - PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT LS GEN IV VICTOR JR RECT PORT 675 H fuel-injection-system
Data sheet
- Engine Make/Size
- Chevy LS Series
- Finish
- Satin
- Flange Type
- 4150
- Cylinder Head Type
- Rectangular Port
- Hardware Included
- Yes
- Fuel Rate
- 42 lbs./hr
- Maximum Horsepower
- 675
- Gasket Or Seal Included
- Yes
- Wiring Harness Included
- Yes
- Fuel Injector Type
- 42 lb/hr
- System Type
- Traditional 4150-Style Kit
- Bore Diameter
- 1.75 in
- Quantity
- Kit
- Distributor Cap Included
- Yes
- Idle Air Control Motor Included
- Yes
- Throttle Body Type
- 4 Barrel
- Fuel Pressure Port
- 1/8-27 NPT
- Manifold Height
- 7.40 in
- Wire Harness Included
- Yes
Package dimensions
Width: 25.25 inch
Height: 10.31 inch
Depth: 30.19 inch
Weight: 43.00 lb
