PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT LS GEN III/IV VICTOR JR CATHEDRAL P

Manufacturer: EDELBROCK
Part number: 35710
MPN: 35710
UPC: 085347357109
Availability:
£3,146.56
Tax included

Qty: 14, Delivery time: 8 working days

Description

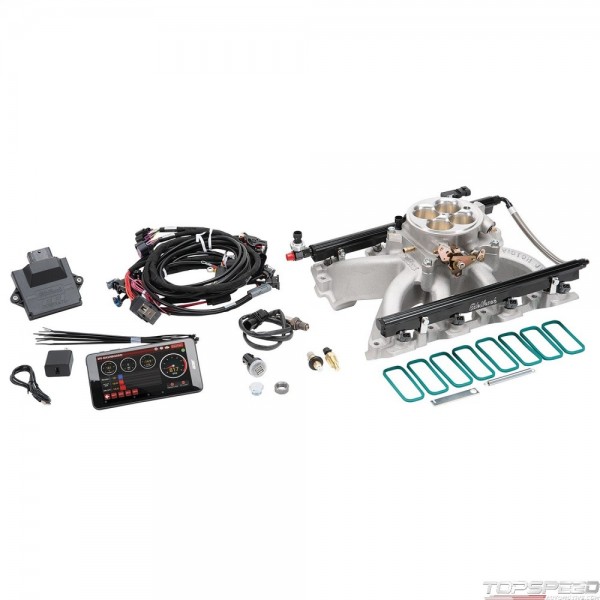

The Edelbrock part PN: 35710 Pro-Flo 4 Sequential Port EFI System for Chevrolet LS GEN III/IV engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish Victor Jr. cathedral port single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don't have a compatible device, then we also offer kits that include a 7in. Android tablet with the E-Tuner 4 app pre-installed., Multiple dash displays are included to allow you to monitor engine vitals and performance from your Android smart phone or tablet., Pro-Flo 4 does not require laptop tuning.

Chevrolet:Small-Block LC9:325 (5.3L),Chevrolet:Small-Block LH8:325 (5.3L),Chevrolet:Small-Block LMF:325 (5.3L),Chevrolet:Small-Block LMG:325 (5.3L),Chevrolet:Small-Block LY5:325 (5.3L),Chevrolet:Small-Block Gen III LM7:325 (5.3L),Chevrolet:Small-Block Gen III LR4:293 (4.8L),Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LMF:325 (5.3L),Chevrolet:Small-Block Gen IV LY5:325 (5.3L)

PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT LS GEN III/IV VICTOR JR CATHEDRAL P - Part number: EDL-35710 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 35710 - PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT LS GEN III/IV VICTOR JR CATHEDRAL P fuel-injection-system

Data sheet

Engine Make/Size
Chevy LS Series
Finish
Satin
Flange Type
4150
Cylinder Head Type
Cathedral Port
Fuel Rate
35 lbs./hr
Maximum Horsepower
550
Gasket Or Seal Included
Yes
Wiring Harness Included
Yes
Fuel Injector Type
35 lb/hr
System Type
Traditional 4150-Style Kit
Bore Diameter
1.75 in
Quantity
Kit
Distributor Cap Included
Yes
Idle Air Control Motor Included
Yes
Throttle Body Type
4 Barrel
Fuel Pressure Port
1/8-27 NPT
Manifold Height
4.95 in
Wire Harness Included
Yes

Package dimensions

Width: 25.13 inch
Height: 10.50 inch
Depth: 30.13 inch
Weight: 35.00 lb
