REGULATOR EFI FUEL PRESSURE-10 AN INLET/OUTLET PORTS (X2)/6 AN RETURN PORT (X1)

Manufacturer: EDELBROCK
Part number: 174022
MPN: 174022
UPC: 087133932262
Availability:
£274.55
Tax included

Qty: 4, Delivery time: 8 working days

Description

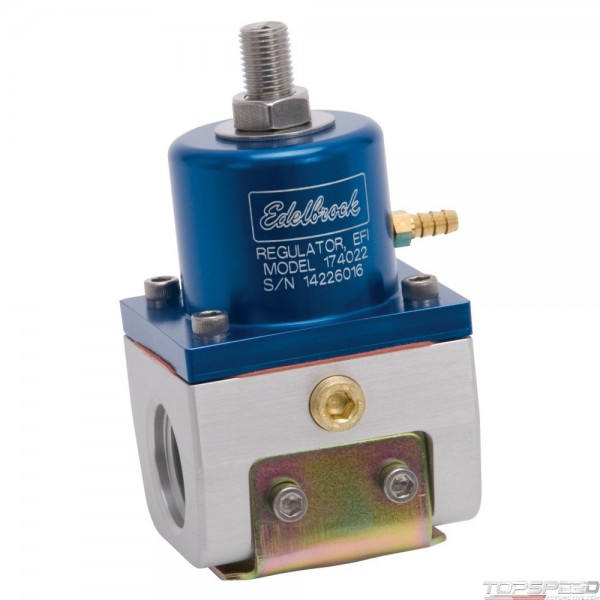

Edelbrock fuel pressure regulators PN: 174022 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.

REGULATOR EFI FUEL PRESSURE-10 AN INLET/OUTLET PORTS (X2)/6 AN RETURN PORT (X1) - Part number: EDL-174022 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 174022 - REGULATOR EFI FUEL PRESSURE-10 AN INLET/OUTLET PORTS (X2)/6 AN RETURN PORT (X1) fuel-injection-pressure-regulator

Data sheet

Adjustable
Yes
Inlet Quantity
1
Pressure
0-100 PSI
Outlet Quantity
1
Port Quantity
4
Mounting Type
Bracket
Inlet Type
Port
Outlet Type
Port
Maximum Pressure Reading
90 ps
Inlet Port Diameter
-10.0 IN
Outlet Port Diameter
-10.0 IN
Gauge Port
Yes

Package dimensions

Width: 4.50 inch
Height: 3.00 inch
Depth: 4.00 inch
Weight: 1.05 lb
