• Out-of-Stock

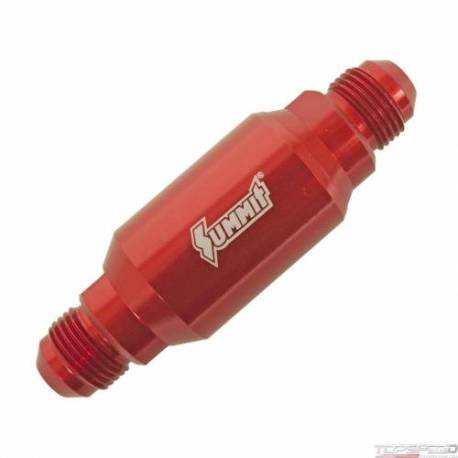

RED BILLET 8AN FUEL FILTER

Manufacturer: Summit Racing
Part number: 230104
MPN: 230104
UPC: 190861007734
Availability: Out-of-Stock
£65.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Fuel Filter, Inline Mount, Aluminum, Red, 40 Microns, -8 AN Male Inlet/Outlet, Each

Summit Racing full flow fuel filters are designed for use in both carbureted and EFI fuel systems. Our filters are constructed from anodized aluminum for durability, flow 130 gph, and feature a reusable 40-micron stainless steel mesh element. Available in both -6 AN and -8 AN sizes, these filters will flow in either direction; we do, however, recommend using the service end (with wrench flats) as the outlet. Order the size you need and the finish you prefer for your application. Models are available for gasoline, alcohol, and E85 fuel.

RED BILLET 8AN FUEL FILTER - Part number: SUM-230104 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 230104 - RED BILLET 8AN FUEL FILTER fuel-filter

Data sheet

Inlet Quantity
One
Overall Length (in.)
4.000 in.
Outlet Quantity
One
Notes
These filters will flow and filter properly in either direction, however we recommend using the service end of the filter (removable end) as the outlet.
Mounting Bracket Included
No
Quantity
Sold individually.
Fittings Included
No
Clamps Included
No
Inlet Attachment
Male threads
Outlet Attachment
Male threads
Fuel Filter Style
Inline
Fuel Filter Inlet Size
-8 AN
Fuel Filter Outlet Size
-8 AN
Smallest Particle Filtered
40 microns
Filter Element Material
Stainless steel mesh
Filter Housing Material
Aluminum
Filter Housing Finish
Red anodized
Maximum Fuel Pressure (psi)
75
Filter Element Included
Yes
Outside Diameter (in.)
1.250 in.

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
