FUEL FILTER 6AN

Manufacturer: Summit Racing
Part number: 230131
MPN: 230131
UPC: 190861014572
Availability: Out-of-Stock
£52.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

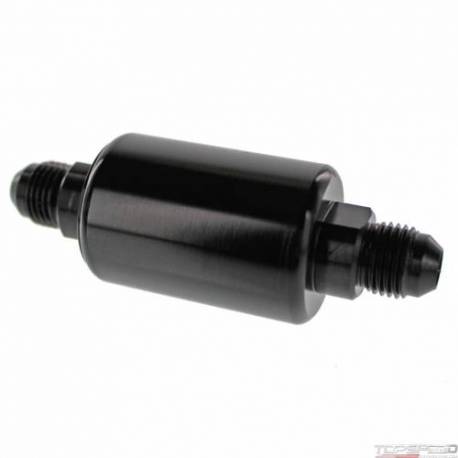

Fuel Filter, Full Flow, Inline, 40 microns, Aluminum, Black Anodized, -6 AN Male Inlet/Outlet, Element, Each

Summit Racing full flow fuel filters are designed for use in both carbureted and EFI fuel systems. Our filters are constructed from anodized aluminum for durability, flow 130 gph, and feature a reusable 40-micron stainless steel mesh element. Available in both -6 AN and -8 AN sizes, these filters will flow in either direction; we do, however, recommend using the service end (with wrench flats) as the outlet. Order the size you need and the finish you prefer for your application. Models are available for gasoline, alcohol, and E85 fuel.

FUEL FILTER 6AN - Part number: SUM-230131 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 230131 - FUEL FILTER 6AN fuel-filter

Data sheet

Inlet Quantity
One
Outlet Quantity
One
Mounting Bracket Included
No
Outside Diameter (in)
1.250 in.
Overall Length (in)
3.000 in.
Quantity
Sold individually.
Fittings Included
No
Clamps Included
No
Inlet Attachment
Male threads
Outlet Attachment
Male threads
Fuel Filter Style
Inline
Fuel Filter Inlet Size
-6AN
Fuel Filter Outlet Size
-6AN
Smallest Particle Filtered
40 microns
Filter Element Material
Stainless steel mesh
Filter Housing Material
Aluminum
Filter Housing Finish
Black anodized
Filter Element Included
Yes

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
