SUMMIT MAX EFI 500 V2
Availability:
Out-of-Stock
Description

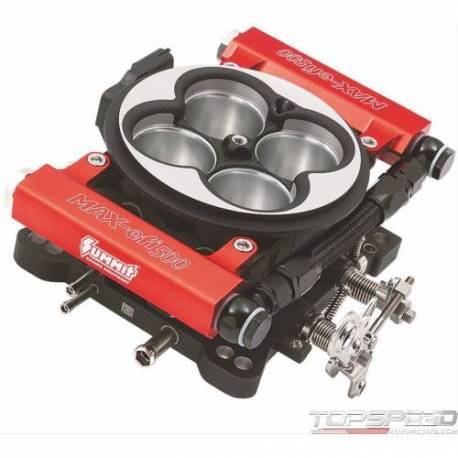

Fuel Injection System, MAX-efi 500 Self-Tuning, 500 HP, Throttle Body, ECM, Satin Black, Kit
Summit Racing introduces its MAX-efi 500 Fuel Injector System, the most efficient way to convert your carbureted engine to premier EFI performance. These self-tuning throttle body units bolt directly to most 4-barrel manifolds; then, through their wideband oxygen sensor, the systems continually adjust fuel delivery to provide the optimum air/fuel ratio under all climate and altitude conditions. MAX-efi will support up to 500 hp, and the self-learning ECU allows for easy tuning.
Summit Racing introduces its MAX-efi 500 Fuel Injector System, the most efficient way to convert your carbureted engine to premier EFI performance. These self-tuning throttle body units bolt directly to most 4-barrel manifolds; then, through their wideband oxygen sensor, the systems continually adjust fuel delivery to provide the optimum air/fuel ratio under all climate and altitude conditions. MAX-efi will support up to 500 hp, and the self-learning ECU allows for easy tuning.
SUMMIT MAX EFI 500 V2 - Part number: SUM-240505 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 240505 - SUMMIT MAX EFI 500 V2 fuel-filter
Data sheet
- Notes
- Has a single -6AN male fuel inlet fitting. This system must be supplied with a continuous 58 psi of fuel pressure.
- Wiring Harness Included
- Yes
- Quantity
- Sold as a kit.
- Fuel Pump Included
- No
- Throttle Body Finish
- Satin black
- Throttle Body Material
- Cast aluminum
- Venturi Quantity
- 4
- Intake Manifold Included
- No
- Throttle Body Included
- Yes
- Distributor Included
- No
- Fuel Pressure Regulator Included
- No
- EGR
- No
- Injection Style
- Throttle body
- Injectors Included
- Yes
- Multi-Port Fuel Rails Included
- No
- Venturi Diameter (mm)
- 45.00mm
- TPS Sensor Included
- Yes
- IAC Motor Included
- Yes
- Maximum Horsepower with Gas
- 500
- Timing Control Compatible
- No
- Power Adder Compatible
- No
- ECM Included
- Yes
- Self Tuning
- Yes
- User Tunable
- Yes
- Transmission Controller Included
- No
- Metering Style
- Speed density
- Throttle Body Mounting Flange
- 4-barrel square bore
- Injector Size (lbs/hr)
- 66 lbs./hr.
- Calibration Module Included
- Yes
- Oxygen Sensor Included
- Yes
- MAP Sensor Included
- Yes
- IAT Sensor Included
- Yes
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
