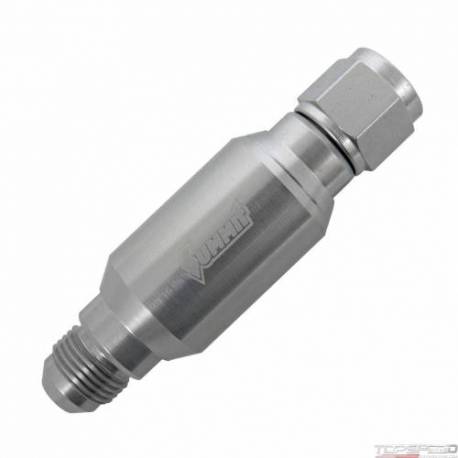

8AN BILLET FUEL FILTER CLEAR

Manufacturer: Summit Racing
Part number: 230147
MPN: 230147
UPC: 190861226333
Availability: Out-of-Stock
£57.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Fuel Filter, Inline Mount, Aluminum, Clear, -8 AN Female Inlet/-8 AN Male Outlet, Each

Summit Racing full flow fuel filters are designed for use in both carbureted and EFI fuel systems. Our filters are constructed from anodized aluminum for durability, flow 130 gph, and feature a reusable 40-micron stainless steel mesh element. Available in both -6 AN and -8 AN sizes, these filters will flow in either direction; we do, however, recommend using the service end (with wrench flats) as the outlet. Order the size you need and the finish you prefer for your application. Models are available for gasoline, alcohol, and E85 fuel.

8AN BILLET FUEL FILTER CLEAR - Part number: SUM-230147 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 230147 - 8AN BILLET FUEL FILTER CLEAR fuel-filter

Data sheet

Inlet Quantity
One
Outlet Quantity
One
Mounting Bracket Included
No
Quantity
Sold individually.
Fittings Included
No
Clamps Included
No
Inlet Attachment
Female threads
Outlet Attachment
Male threads
Fuel Filter Style
Inline
Fuel Filter Inlet Size
-8AN
Fuel Filter Outlet Size
-8AN
Smallest Particle Filtered
40 microns
Filter Element Material
Stainless steel mesh
Filter Housing Material
Aluminum
Filter Housing Finish
Clear anodized
Maximum Fuel Pressure (psi)
75
Filter Element Included
Yes

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
