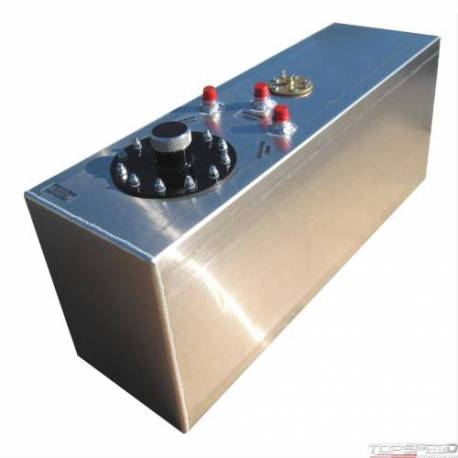

15 GALLON ALU FUEL CELL

Manufacturer: Summit Racing
Part number: 293251
MPN: 293251
UPC: 798663216103
Availability: Out-of-Stock
£832.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Fuel Cell, Aluminum, Natural, 15 Gallons, 0-90 Ohm Sender, Each

Summit aluminum fuel cells are crafted from 5051 aircraft aluminum alloy with TIG-welded seams. They offer superior strength in a lightweight package. The cells are available in nearly a dozen sizes/capacities, with models that are compatible with gasoline, diesel, alcohol, or E85. Depending on the fuel cell you select, other features may include: flush-mount, aircraft-style cap; -8 AN pickup; vent; return fittings; foam; and 0-90 ohm GM sending unit. Order the model best-suited for your vehicle.

15 GALLON ALU FUEL CELL - Part number: SUM-293251 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 293251 - 15 GALLON ALU FUEL CELL fuel-cell

Data sheet

Height (in.)
12.000 in.
Length (in.)
30.000 in.
Baffled
No
Capacity
15 gallons
Notes
Fuel cell is manufactured from 0.100 in. thick aluminum.
Width (in)
9.000 in.
Quantity
Sold individually.
Fuel Pump Included
No
Sending Unit Included
Yes
Outlet Fitting Quantity
One
Foam
No
Fuel Cell Material
Aluminum
Fuel Cell Color
Natural
Return Fitting Size
-8AN
Tip Over Valve Size
-8AN
Sump
No
Sender Ohm Range
0 ohms empty, 90 ohms full
Outlet Fitting Size
-8AN

Package dimensions

Width: 99.00 inch
Height: 20.00 inch
Depth: 20.00 inch
Weight: 99.00 lb
