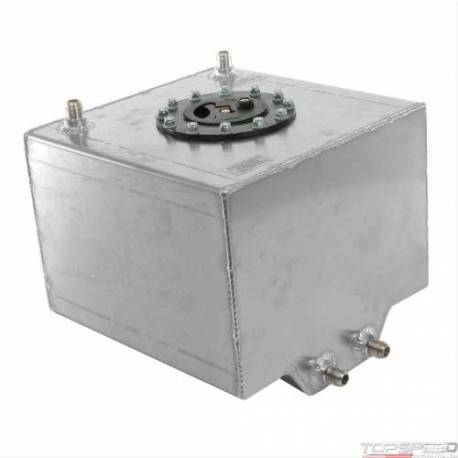

5 GAL ALU FUEL CELL W/FOAM

Manufacturer: Summit Racing
Part number: 293205
MPN: 293205
UPC: 798663320503
Availability: Out-of-Stock
£676.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Fuel Cell, Aluminum, Natural, 5 Gallons, Each

Summit aluminum fuel cells are crafted from 5051 aircraft aluminum alloy with TIG-welded seams. They offer superior strength in a lightweight package. The cells are available in nearly a dozen sizes/capacities, with models that are compatible with gasoline, diesel, alcohol, or E85. Depending on the fuel cell you select, other features may include: flush-mount, aircraft-style cap; -8 AN pickup; vent; return fittings; foam; and 0-90 ohm GM sending unit. Order the model best-suited for your vehicle.

5 GAL ALU FUEL CELL W/FOAM - Part number: SUM-293205 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 293205 - 5 GAL ALU FUEL CELL W/FOAM fuel-cell

Data sheet

Height (in.)
8.000 in.
Length (in.)
12.000 in.
Baffled
No
Capacity
5 gallons
Notes
Fuel cell is manufactured from 0.100 in. thick aluminum. Internal safety foam designed to be used with gasoline only.
Width (in)
12.000 in.
Quantity
Sold individually.
Fuel Pump Included
No
Sending Unit Included
No
Outlet Fitting Quantity
Two
Foam
Yes
Fuel Cell Material
Aluminum
Fuel Cell Color
Natural
Return Fitting Size
-8AN
Sump
Yes
Outlet Fitting Size
-8AN
Sump Depth (in)
2 in.
Vent Fitting Size
-8AN

Package dimensions

Width: 99.00 inch
Height: 20.00 inch
Depth: 20.00 inch
Weight: 99.00 lb
