HEADER SBC
Availability:
Out-of-Stock
Description

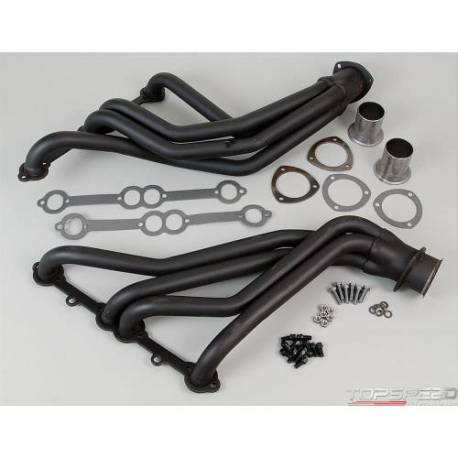

Headers, Long Tube, Steel, Painted, Chevy, GMC, SUV, Pickup, Small Block, Pair
Our Summit Performance headers are manufactured from mandrel-bent tubing for superior flow and greater horsepower. The headers feature a pressure-formed collector for a better flow rate and a jig-welded tube-to-flange plate for a perfect fit. They're made for off-road and racing use only. Unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This includes components like cylinder heads, chassis, steering, motor mounts, body mounts and bushings, etc. If your vehicle is using aftermarket components, parts from other applications, or custom-altered parts, then it is the installer's responsibility to verify fitment.
HEADER SBC - Part number: SUM-G9006 - for American Cars - delivery to the UK and the EU
Manufacturer part number: G9006 - HEADER SBC exhaust-header
Data sheet
- Gaskets Included
- Yes
- Notes
- The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
- Flange Thickness (in)
- 5/16 in.
- Quantity
- Sold as a pair.
- Cylinder Head Port Shape
- Oval
- Collector Diameter
- 3.000 in.
- Header Finish
- Temporary non-high temperature paint
- Header Style
- Long Tube
- Collector Attachment
- 3-bolt flange
- Bolts/Studs Included
- Yes
- Transmission Mount Included
- No
- Catalytic Converter(s) Included
- No
- Header Material
- Steel
- Weld-Up
- No
- Primary Tube Outside Diameter (in)
- 1 1/2 in.
- Flange Style
- Standard
- Collector Reducers Included
- Yes
- Tuned
- No
- Primary Tube Gauge
- 18-gauge
- Crossover Pipe Included
- No
- Motor Mounts Included
- No
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
