Out-of-Stock

V/S V8 383-400

Manufacturer: EDELBROCK

Part number: 5892

MPN: 5892

UPC: 085347058921

Availability: Out-of-Stock

£89.95

Tax included

Call to check: 0044 (0) 1933 225 564

Description

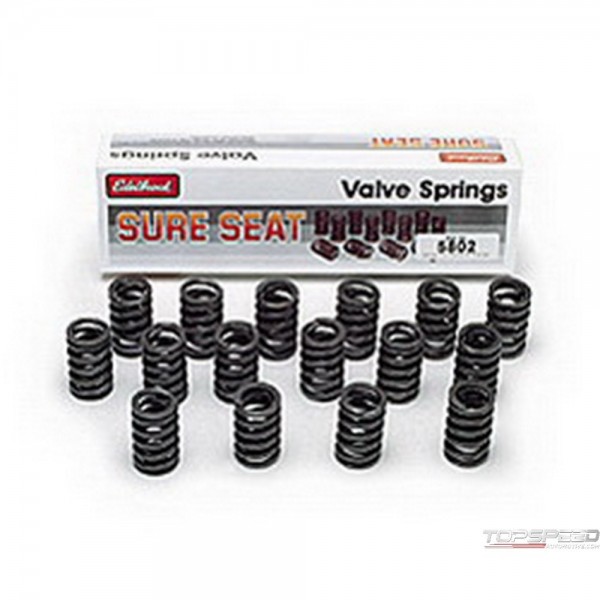

The Edelbrock PN: 5892 Sure Seat Valve Spring for Chrysler 383-400-413-440 V8 1969-79 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L)

V/S V8 383-400 - Part number: EDL-5892 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 5892 - V/S V8 383-400 engine-valve-spring

Data sheet

Position: Exhaust or Intake
Material: Chromium Silicon
Inside Diameter: 1.120 IN
Outside Diameter: 1.550 IN
Spring Type: Cylindrical
Camshaft Type: Hydraulic Flat Tappet
Coil Bind Height: 1.350 IN
Installed Height (in.): 1.86
Installed Pressure: 125 PSI
Open Height: 0.430 IN
Spring Rate (lbs./in.): N/A
Tubing Length: 200
Quantity: Set of 16
Damper Spring Included: No
Installed Height: 1.860 IN
Open Pressure: 200 P2
Springs Per Valve: Single

Package dimensions

Width: 3.38 inch
Height: 2.25 inch
Depth: 12.25 inch
Weight: 3.45 lb
