V/S V8 396-454

Manufacturer: EDELBROCK
Part number: 5862
MPN: 5862
UPC: 085347058624
Availability:
£140.56
Tax included

Qty: 13, Delivery time: 8 working days

Description

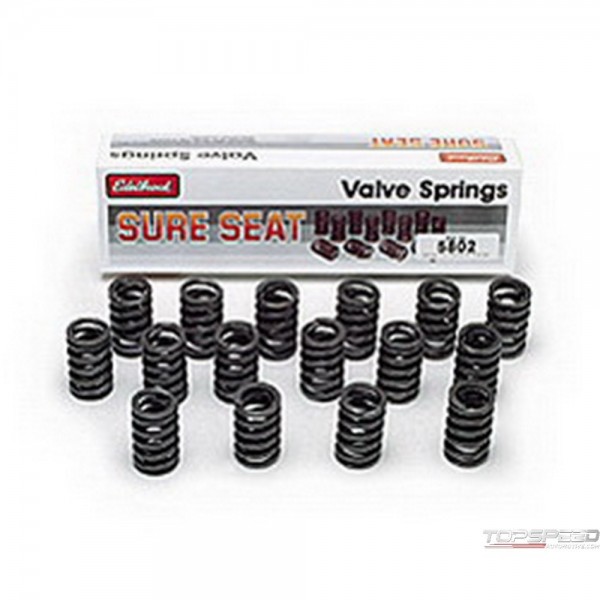

The Edelbrock PN: 5862 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

V/S V8 396-454 - Part number: EDL-5862 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 5862 - V/S V8 396-454 engine-valve-spring

Data sheet

Position
Exhaust or Intake
Material
Chromium Silicon
Inside Diameter
1.082 IN
Outside Diameter
1.500 IN
Spring Type
Cylindrical
Camshaft Type
Hydraulic Flat Tappet
Coil Bind Height
1.340 IN
Installed Height (in.)
1.88
Installed Pressure
90 PSI
Open Height
0.420 IN
Spring Rate (lbs./in.)
N/A
Tubing Length
220
Quantity
Set of 16
Damper Spring Included
Yes
Installed Height
1.880 IN
Open Pressure
220 P2
Springs Per Valve
Single

Package dimensions

Width: 3.38 inch
Height: 2.25 inch
Depth: 12.25 inch
Weight: 4.70 lb
