VS FOR HYD ROLLER CAM W/1.800in. INSTALLED HEIGHT

Manufacturer: EDELBROCK
Part number: 5845
MPN: 5845
UPC: 085347058457
Availability:
£212.56
Tax included

Qty: 7, Delivery time: 8 working days

Description

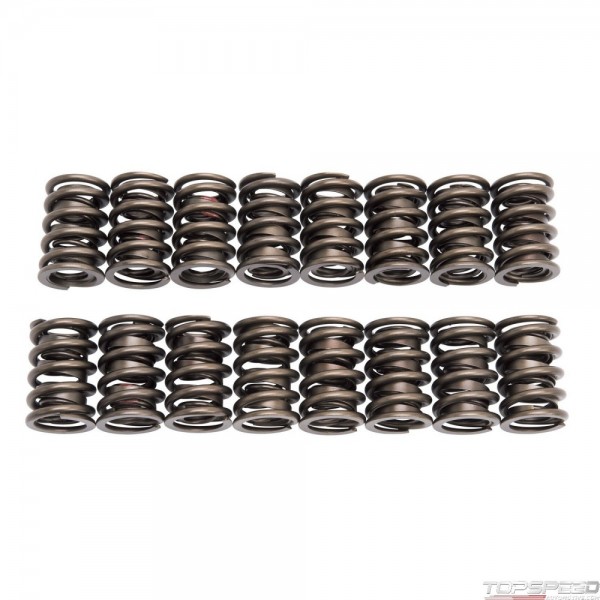

The Edelbrock PN: 5845 Replacement Hydraulic Roller Sure Seat Valve Spring for Edelbrock cylinder heads are made of highest quality spring wire and precision wound to close tolerances.

VS FOR HYD ROLLER CAM W/1.800in. INSTALLED HEIGHT - Part number: EDL-5845 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 5845 - VS FOR HYD ROLLER CAM W/1.800in. INSTALLED HEIGHT engine-valve-spring

Data sheet

Position
Exhaust or Intake
Material
Chromium Silicon
Inside Diameter
1.060 IN
Outside Diameter
1.460 IN
Spring Type
Cylindrical
Camshaft Type
Hydraulic Roller
Coil Bind Height
1.150 IN
Installed Height (in.)
1.8
Installed Pressure
150 PSI
Open Height
0.580 IN
Spring Rate (lbs./in.)
N/A
Tubing Length
148
Quantity
Set of 16
Damper Spring Included
Yes
Installed Height
1.800 IN
Open Pressure
420 P2
Springs Per Valve
Dual

Package dimensions

Width: 12.75 inch
Height: 5.00 inch
Depth: 18.25 inch
Weight: 6.00 lb
