Out-of-Stock

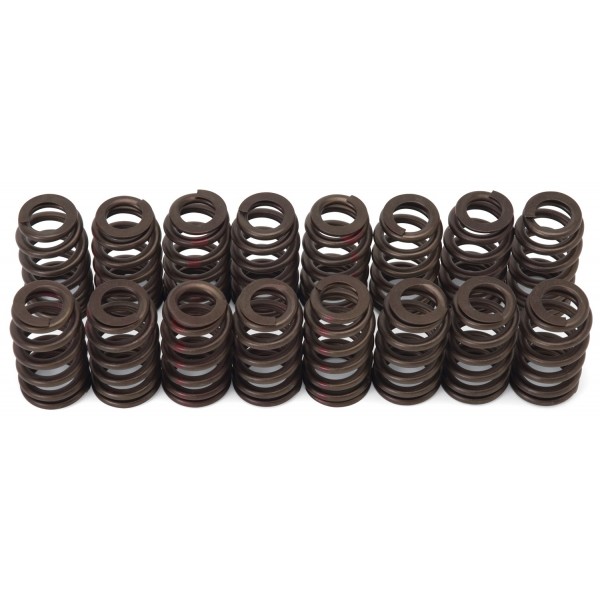

VALVE SPRING PERF RPM BEEHIVE STYLE (SET OF 16)

Manufacturer: EDELBROCK

Part number: 5768

MPN: 5768

UPC: 085347057689

Availability: Out-of-Stock

£0.00

Tax included

Call to check: 0044 (0) 1933 225 564

Description

The Edelbrock PN: 5768 Sure Seat Valve Spring for Chevy LS V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

VALVE SPRING PERF RPM BEEHIVE STYLE (SET OF 16) - Part number: EDL-5768 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 5768 - VALVE SPRING PERF RPM BEEHIVE STYLE (SET OF 16) engine-valve-spring

Data sheet

Position: Exhaust or Intake
Material: Chromium Silicon
Inside Diameter: (Top) 0.650 in, (Bottom) 0.885 IN
Outside Diameter: (Top) 1.066 in, (Bottom) 1.300 IN
Spring Type: Beehive
Camshaft Type: Hydraulic Roller
Coil Bind Height: 1.140 IN
Installed Height (in.): 1.8
Installed Pressure: 138 PSI
Open Height: 0.600 IN
Spring Rate (lbs./in.): N/A
Tubing Length: 326
Quantity: Set of 16
Damper Spring Included: No
Installed Height: 1.800 IN
Open Pressure: 326 P2
Springs Per Valve: Single

Package dimensions

Width: 3.38 inch
Height: 2.25 inch
Depth: 12.25 inch
Weight: 4.00 lb
