• Out-of-Stock

V/S PERF SBF SPRING KIT

Manufacturer: EDELBROCK
Part number: 5896
MPN: 5896
UPC: 085347058969
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

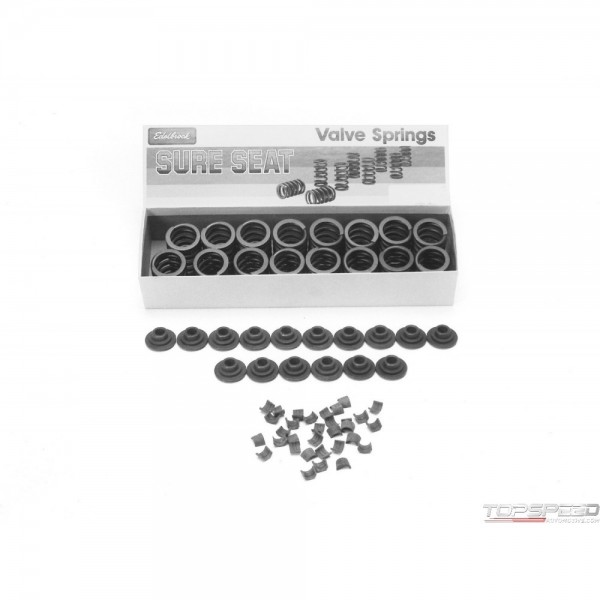

Edelbrock part PN: 5896 Sure Seat Valve Spring Kit is designed for Small-Block Ford 289-302 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16., Valve Spring Specifications:, Type: Non-Rotator , Seat Pressure: 90 lbs., Installed Height: 1.700in., Open Pressure: 169 lbs. @ 0.310in., Outside Diameter: 1.354in., Inside Diameter: 1.010in., Coil Bind: 1.200in.

Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)

V/S PERF SBF SPRING KIT - Part number: EDL-5896 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 5896 - V/S PERF SBF SPRING KIT engine-valve-spring-kit

Data sheet

Inside Diameter
1.01 IN
Outside Diameter
1.354 IN
Spring Type
Standard
Camshaft Type
Flat Tappet
Coil Bind Height
1.20 IN
Installed Height (in.)
1.7
Installed Pressure
90 ps
Open Height
0.310 IN
Tubing Length
200
Installed Height
1.700 IN
Open Pressure
169 ps

Package dimensions

Width: 3.38 inch
Height: 2.25 inch
Depth: 12.25 inch
Weight: 4.10 lb
