V/S PERF SBC SPRING KIT

Manufacturer: EDELBROCK
Part number: 5894
MPN: 5894
UPC: 085347058945
Availability:
£207.55
Tax included

Qty: 9, Delivery time: 8 working days

Description

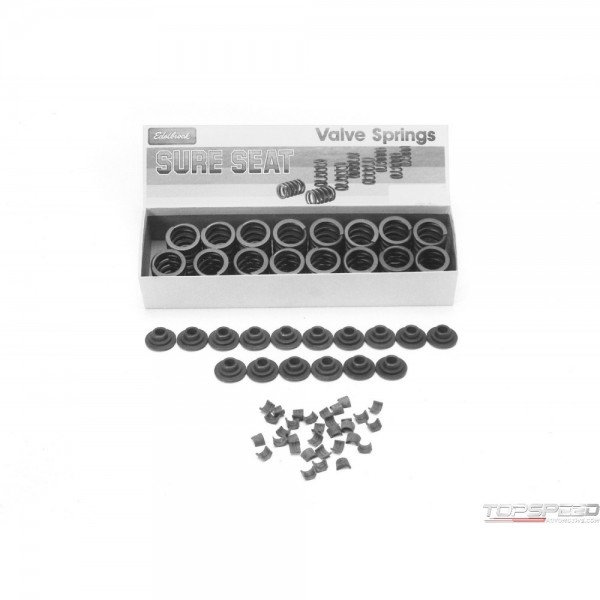

Edelbrock part PN: 5894 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16., Valve Spring Specifications:, Type: Non-Rotator , Seat Pressure: 80 lbs., Installed Height: 1.700in., Open Pressure: 200 lbs. @ 0.475in., Outside Diameter: 1.222in., Inside Diameter: 0.875in., Coil Bind: 1.150in.

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

V/S PERF SBC SPRING KIT - Part number: EDL-5894 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 5894 - V/S PERF SBC SPRING KIT engine-valve-spring-kit

Data sheet

Material
Chromium Silicon
Inside Diameter
0.880 IN
Outside Diameter
1.265 IN
Spring Type
Cylindrical
Camshaft Type
Hydraulic Flat Tappet
Coil Bind Height
1.150 IN
Installed Height (in.)
1.7
Installed Pressure
80 PSI
Open Height
0.475 IN
Tubing Length
200
Quantity
Kit
Damper Spring Included
Yes
Installed Height
1.700 IN
Open Pressure
200 P2
Springs Per Valve
Single
Locks Included
Yes
Retainers Included
Yes

Package dimensions

Width: 3.38 inch
Height: 2.25 inch
Depth: 12.25 inch
Weight: 4.23 lb
