V/S BBC TORKER SPRING KIT

Manufacturer: EDELBROCK
Part number: 5795
MPN: 5795
UPC: 085347057955
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

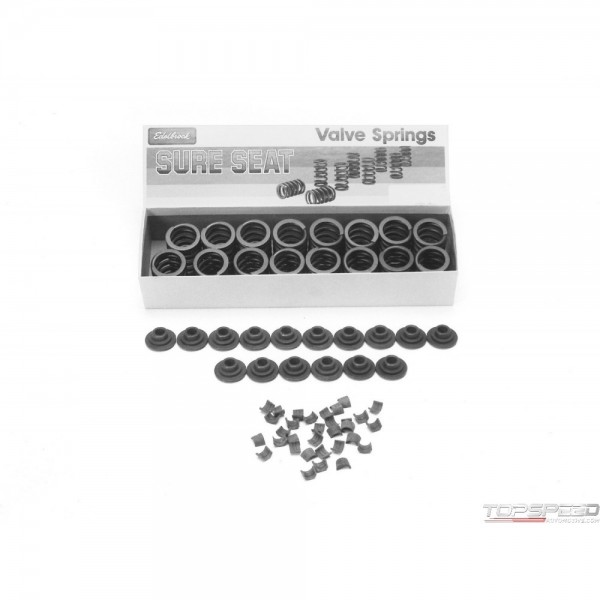

Edelbrock part PN: 5795 Sure Seat Valve Spring Kit is designed for 396-402-427-454 V-8 Big-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer, RPM & Torker Series camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16., Valve Spring Specifications:, Type: Non-Rotator , Seat Pressure: 100 lbs., Installed Height: 1.880in., Open Pressure: 300 lbs. @ 0.580in., Outside Diameter: 1.440in., Inside Diameter: 0.800in., Coil Bind: 1.340in.

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

V/S BBC TORKER SPRING KIT - Part number: EDL-5795 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 5795 - V/S BBC TORKER SPRING KIT engine-valve-spring-kit

Data sheet

Material
Chromium Silicon
Inside Diameter
0.800 IN
Outside Diameter
1.440 IN
Spring Type
Cylindrical
Camshaft Type
Hydraulic Flat Tappet
Coil Bind Height
1.340 IN
Installed Height (in.)
1.88
Installed Pressure
100 PSI
Open Height
0.580 IN
Tubing Length
300
Quantity
Kit
Damper Spring Included
Yes
Installed Height
1.880 IN
Open Pressure
300 P2
Springs Per Valve
Single
Locks Included
Yes
Retainers Included
Yes

Package dimensions

Width: 3.38 inch
Height: 2.25 inch
Depth: 12.25 inch
Weight: 5.48 lb
