REPLCMT SPRING SEAT CUP KIT SBC/FORD/CHRYSLER/PONTIAC/OLDS

Manufacturer: EDELBROCK
Part number: 5769
MPN: 5769
UPC: 085347057696
Availability:
£85.55
Tax included

Qty: 9, Delivery time: 8 working days

Description

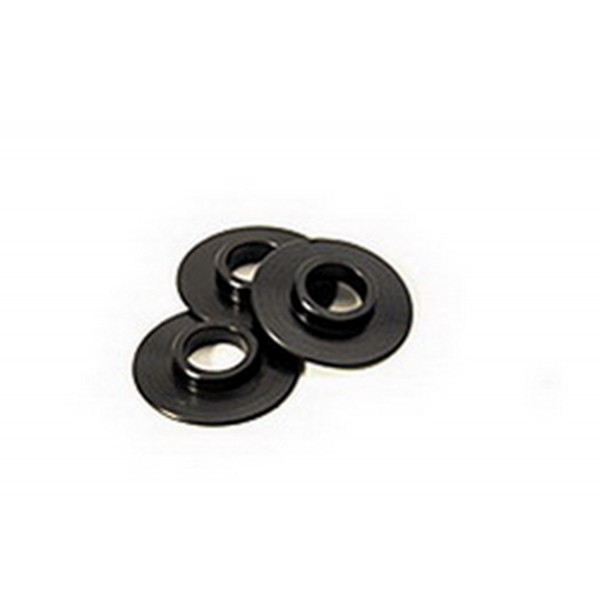

Edelbrock part PN: 5769 Valve Spring Seat Cups for Edelbrock S/B Chevy, 289-351W Ford, 318-360 Chrysler and Pontiac heads using PN: 5767/PN: 5825/PN: 5845 valve springs. These Spring cups provide a hardened barrier between the springs and the aluminum heads, positively locating the base of the spring to prevent unwanted spring movement. Set of 16.

REPLCMT SPRING SEAT CUP KIT SBC/FORD/CHRYSLER/PONTIAC/OLDS - Part number: EDL-5769 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 5769 - REPLCMT SPRING SEAT CUP KIT SBC/FORD/CHRYSLER/PONTIAC/OLDS engine-valve-seat

Data sheet

Finish
Black Oxide
Material
Steel
Inside Diameter
0.570 IN
Thickness
0.065 IN
Outside Diameter
1.630 IN
Grade Type
Performance
Universal Or Specific Fit
Specific
Quantity
Set of 16
Recommended Use
Requires Minimum Valve Spring Counterbore Diameter Of 1.65 in.

Package dimensions

Width: 11.50 inch
Height: 0.50 inch
Depth: 8.25 inch
Weight: 0.70 lb
