BBC V-8 65-94 PERFORMER TRUE ROLLING TIMING CHAIN SET

Manufacturer: EDELBROCK
Part number: 7809
MPN: 7809
UPC: 085347078097
Availability:
£109.55
Tax included

Qty: 8, Delivery time: 8 working days

Description

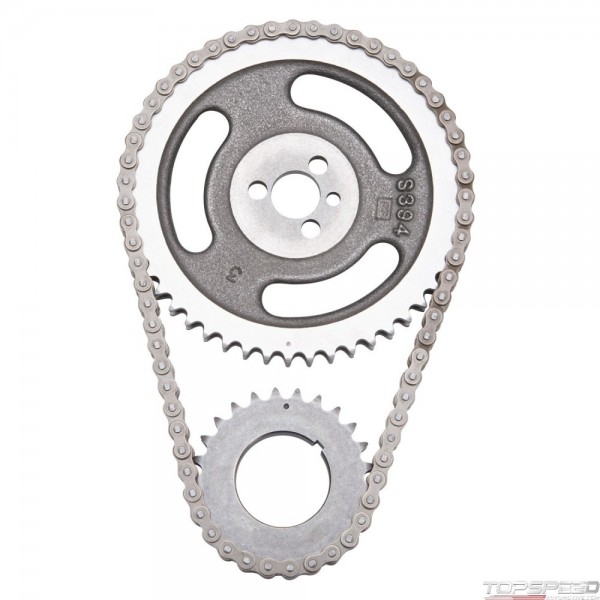

Edelbrock part PN: 7809 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures.? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking.? Never stretch the chain with a screwdriver.? Check for clearance between the timing chain and block and between the chain and front cover before reassembly.? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break

Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L),Chevrolet:Big-Block Gen V:454 (7.4L)-502 (8.2L)

BBC V-8 65-94 PERFORMER TRUE ROLLING TIMING CHAIN SET - Part number: EDL-7809 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 7809 - BBC V-8 65-94 PERFORMER TRUE ROLLING TIMING CHAIN SET engine-timing-set

Data sheet

Engine Make/Size
Chevy Big Block (396-502)
Keyway Adjustable
No
Timing Chain Type
Single Roller

Package dimensions

Width: 6.70 inch
Height: 1.60 inch
Depth: 10.90 inch
Weight: 3.80 lb
