TIMING COVER 2004-07 GM LS2 TWO PIECE

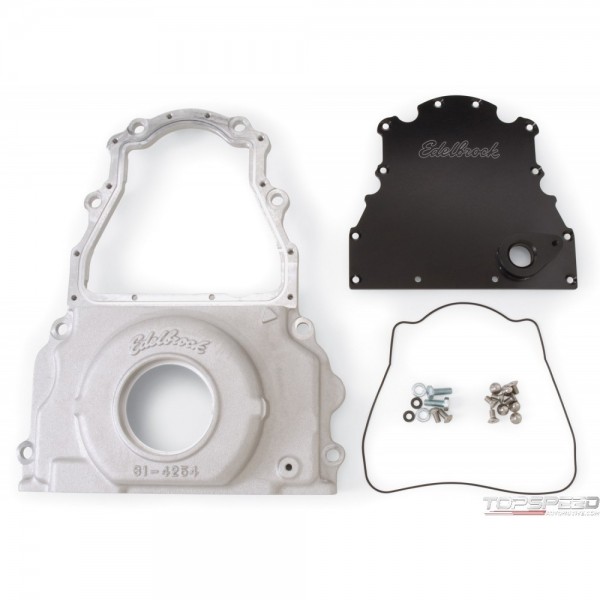

Edelbrock part PN: 4255 With Front Mounted Cam Sensor w/hole (LS2 and Later Model Trucks) These two-piece aluminum timing covers for GM Gen III & IV LS Series allow quick camshaft removal and installation without the need to remove the damper pulley or steering components. The cam can be installed and removed through a window in the front of the cover which is sealed with a plate and O-ring for superior leak prevention. Not for use with a double roller timing chains.

Chevrolet:Small-Block LC9:325 (5.3L),Chevrolet:Small-Block LH8:325 (5.3L),Chevrolet:Small-Block LMG:325 (5.3L),Chevrolet:Small-Block Gen IV L99:376 (6.2L),Chevrolet:Small-Block Gen IV LMF:325 (5.3L),Chevrolet:Small-Block Gen IV LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LS3:376 (6.2L),Chevrolet:Small-Block Gen IV LY5:325 (5.3L)
