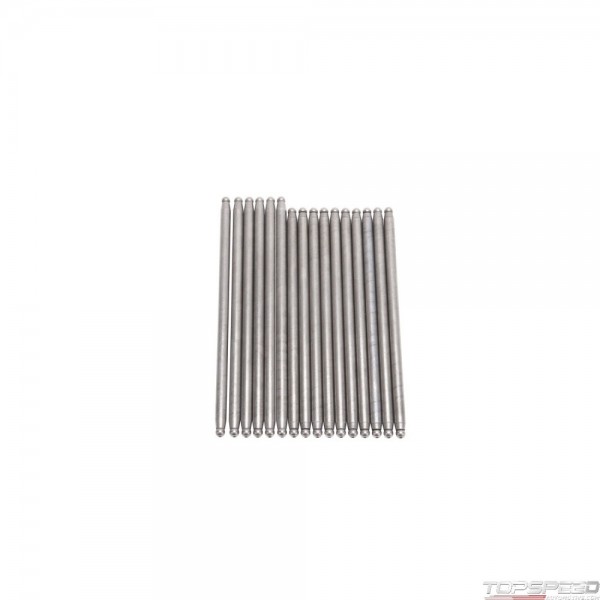

PUSHROD SET ONE PIECE CHEVY 348/409 W 3/8in. OD x 8.300in. LONG (INTAKE)/8.750in

Manufacturer: EDELBROCK
Part number: 9648
MPN: 9648
UPC: 085347096480
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Edelbrock part PN: 9648 Pushrods are designed for Chevy 348/409 'W' series V-8 engine applications. These one-piece pushrods are manufactured from high quality 4130 Chromoly steel tubing that has been surface hardened for maximum durability. They have precise formed wedged ends for a high quality fit with the cup seats. A black oxide finish is added for corrosion resistance., Pushrod Specifications:,For use with Edelbrock hydraulic roller lifters PN: 97423,Outside Diameter: 3/8in.,Length: 8.300in./8.750in.

Chevrolet:W-Series:348 (5.7L)-409 (6.7L)

PUSHROD SET ONE PIECE CHEVY 348/409 W 3/8in. OD x 8.300in. LONG (INTAKE)/8.750in - Part number: EDL-9648 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 9648 - PUSHROD SET ONE PIECE CHEVY 348/409 W 3/8in. OD x 8.300in. LONG (INTAKE)/8.750in engine-push-rod

Data sheet

Engine Make/Size
Chevy 348-409
Finish
Black Oxide
Material
Chromoly
Diameter (in.)
0.375 in.
Length
(8-Intake) 8.300 in, (8-Exhaust) 8.750 IN
Overall Length
OEM
Quantity
Set of 16
Diameter
0.375 IN
Recommended Use
For Use With Edelbrock Hydraulic Roller Lifters #97423
Bottom Tip Diameter
0.375 IN
Bottom Tip Type
Ball
Top Tip Diameter
0.375 IN
Top Tip Type
Ball
Wall Thickness
0.080 IN

Package dimensions

Width: 3.25 inch
Height: 1.75 inch
Depth: 10.75 inch
Weight: 2.31 lb
