SBF 4.06 COATED PISTON SET

Manufacturer: Summit Racing
Part number: 17302C60
MPN: 17302C-60
UPC: 190861065086
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

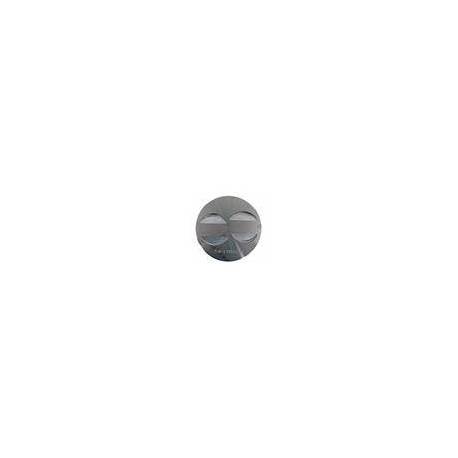

Pistons, Hypereutectic, Flat, 4.060 in. Bore, Ford, SBF, Set of 8

Summit offers coated hypereutectic pistons to furnish you with a more affordable engine build. These internal combustion engine pistons are cast using a hypereutectic aluminum alloy—and then layered with a special 'break in' coating that wears to the cylinder walls. This coating provides an extra level of protection in three ways: superior thermal and wear characteristics to increase the piston strength; scuff and seizure resistance; and improved groove wear. Whatever your piston requirement, Summit Racing has you covered! Order the size and options needed for your application.

SBF 4.06 COATED PISTON SET - Part number: SUM-17302C60 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 17302C-60 - SBF 4.06 COATED PISTON SET engine-piston-ring-set

Data sheet

Stroke
3.000 in.
Quantity
Sold as a set of 8.
Rod Length
5.090 in.
Piston Material
Hypereutectic aluminum
Bore (mm)
103.124mm
File Fit
No
Gapless
No
Wrist Pin Style
Press-fit
Bore (in.)
4.060 in.
Piston Rings Included
No
Engine Stroke Type
Stock
Piston Style
Flat top, with four valve reliefs
Piston Head Volume (cc)
+3.00cc
Wrist Pin Retainers Included
No
Wrist Pin Included
Yes
Piston Ring Thickness
5/64 in. x 5/64 in. x 3/16 in.
Compression Height (in.)
1.605 in.
Pin Diameter (in.)
0.912 in.

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
