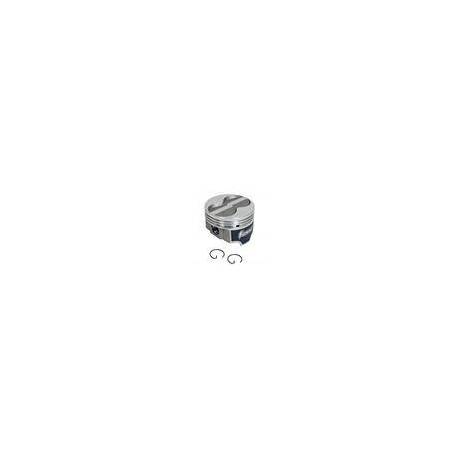

302 FORD FORGED PISTON SET
Availability:
Out-of-Stock
Description
Pistons, Forged, Flat, 4.000 in. Bore, Ford, Set of 8
Make your engine rebuild more affordable with Summit coated forged pistons! They offer the strength of a forging at a cast piston price. They're forged from 4032 aluminum, an alloy containing silicon—which controls the thermal expansion for tighter piston-to-wall clearances. This unique alloy and design reduces piston wobble, limits noise, improves piston ring seating, and increases the overall life of skirts and pin bores. The special coating on these forged pistons adds extra protection from both skirt scuffing during cold starts or on an overheated engine. These sets are available in dozens of models/options to fit applications from 1967 and up. Summit Racing coated forged pistons will meet your engine demands!
Make your engine rebuild more affordable with Summit coated forged pistons! They offer the strength of a forging at a cast piston price. They're forged from 4032 aluminum, an alloy containing silicon—which controls the thermal expansion for tighter piston-to-wall clearances. This unique alloy and design reduces piston wobble, limits noise, improves piston ring seating, and increases the overall life of skirts and pin bores. The special coating on these forged pistons adds extra protection from both skirt scuffing during cold starts or on an overheated engine. These sets are available in dozens of models/options to fit applications from 1967 and up. Summit Racing coated forged pistons will meet your engine demands!
302 FORD FORGED PISTON SET - Part number: SUM-17370FC00 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 17370FC-00 - 302 FORD FORGED PISTON SET engine-piston-ring-set
Data sheet
- Stroke
- 3.000 in.
- Quantity
- Sold as a set of 8.
- Rod Length
- 5.090 in.
- Piston Material
- Forged Aluminum
- Bore (mm)
- 101.600mm
- File Fit
- No
- Gapless
- No
- Wrist Pin Style
- Press-fit or floating
- Bore (in.)
- 4.000 in.
- Piston Rings Included
- No
- Engine Stroke Type
- Stock
- Piston Style
- Flat top, with four valve reliefs
- Piston Head Volume (cc)
- +11.00cc
- Wrist Pin Retainers Included
- Yes
- Wrist Pin Included
- Yes
- Pin Diameter (in)
- 0.912 in.
- Piston Ring Thickness
- 5/64 in. x 5/64 in. x 3/16 in.
- Compression Height (in.)
- 1.608 in.
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
