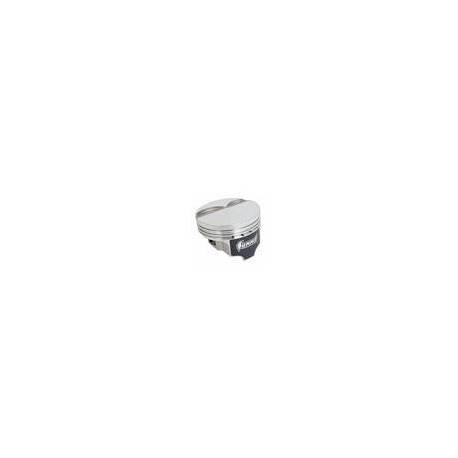

5.3L LS PISTONS 2V
Availability:
Out-of-Stock
Description
Pistons, Forged Aluminum, Flat, 3.780 in. Bore, 1.304 in. Compression Height, 0.927 in. Pin, Chevy, LS, Set of 8
Make your engine rebuild more affordable with Summit coated forged pistons! They offer the strength of a forging at a cast piston price. They're forged from 4032 aluminum, an alloy containing silicon—which controls the thermal expansion for tighter piston-to-wall clearances. This unique alloy and design reduces piston wobble, limits noise, improves piston ring seating, and increases the overall life of skirts and pin bores. The special coating on these forged pistons adds extra protection from both skirt scuffing during cold starts or on an overheated engine. These sets are available in dozens of models/options to fit applications from 1967 and up. Summit Racing coated forged pistons will meet your engine demands!
Make your engine rebuild more affordable with Summit coated forged pistons! They offer the strength of a forging at a cast piston price. They're forged from 4032 aluminum, an alloy containing silicon—which controls the thermal expansion for tighter piston-to-wall clearances. This unique alloy and design reduces piston wobble, limits noise, improves piston ring seating, and increases the overall life of skirts and pin bores. The special coating on these forged pistons adds extra protection from both skirt scuffing during cold starts or on an overheated engine. These sets are available in dozens of models/options to fit applications from 1967 and up. Summit Racing coated forged pistons will meet your engine demands!
5.3L LS PISTONS 2V - Part number: SUM-17401C - for American Cars - delivery to the UK and the EU
Manufacturer part number: 17401C - 5.3L LS PISTONS 2V engine-piston-ring-set
Data sheet
- Stroke
- 3.622 in.
- Quantity
- Sold as a set of 8.
- Rod Length
- 6.125 in.
- Piston Material
- Forged Aluminum
- Bore (mm)
- 96.012mm
- File Fit
- No
- Gapless
- No
- Wrist Pin Style
- Press-fit or floating
- Bore (in.)
- 3.780 in.
- Piston Rings Included
- No
- Engine Stroke Type
- Stock
- Piston Style
- Flat top, with two valve reliefs
- Piston Head Volume (cc)
- +2.90cc
- Wrist Pin Retainers Included
- Yes
- Wrist Pin Included
- Yes
- Piston Ring Thickness
- 1.50mm x 1.50mm x 3.00mm
- Compression Height (in.)
- 1.304 in.
- Pin Diameter (in.)
- 0.927 in.
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
