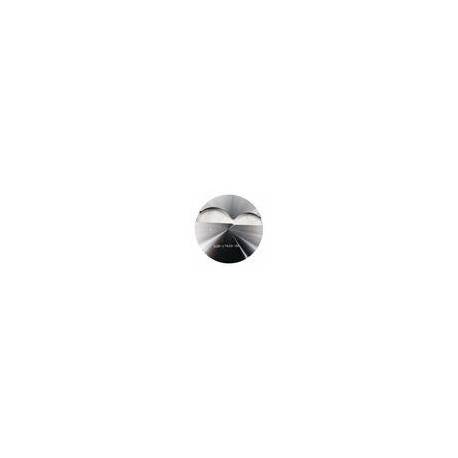

5.3L 327 LS PISTONS 2V
Availability:
Out-of-Stock
Description
Pistons, Forged Aluminum, Flat, 3.810 in. Bore, 1.331 in. Compression Height, 0.945 in. Pin, Chevy, LS, Set of 8
Make your engine rebuild more affordable with Summit coated forged pistons! They offer the strength of a forging at a cast piston price. They're forged from 4032 aluminum, an alloy containing silicon—which controls the thermal expansion for tighter piston-to-wall clearances. This unique alloy and design reduces piston wobble, limits noise, improves piston ring seating, and increases the overall life of skirts and pin bores. The special coating on these forged pistons adds extra protection from both skirt scuffing during cold starts or on an overheated engine. These sets are available in dozens of models/options to fit applications from 1967 and up. Summit Racing coated forged pistons will meet your engine demands!
Make your engine rebuild more affordable with Summit coated forged pistons! They offer the strength of a forging at a cast piston price. They're forged from 4032 aluminum, an alloy containing silicon—which controls the thermal expansion for tighter piston-to-wall clearances. This unique alloy and design reduces piston wobble, limits noise, improves piston ring seating, and increases the overall life of skirts and pin bores. The special coating on these forged pistons adds extra protection from both skirt scuffing during cold starts or on an overheated engine. These sets are available in dozens of models/options to fit applications from 1967 and up. Summit Racing coated forged pistons will meet your engine demands!
5.3L 327 LS PISTONS 2V - Part number: SUM-17400C30 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 17400C-30 - 5.3L 327 LS PISTONS 2V engine-piston-ring-set
Data sheet
- Notes
- These pistons with .945 in. pins are designed for Gen. 3 Press-fit rod applications. Gen. 4 full-floating connecting rods with .9433 in. pins variants are available in the Summit Pro LS forged piston line.
- Stroke
- 3.622 in.
- Quantity
- Sold as a set of 8.
- Rod Length
- 6.098 in.
- Piston Material
- Forged Aluminum
- Bore (mm)
- 96.770mm
- File Fit
- No
- Gapless
- No
- Wrist Pin Style
- Press-fit or floating
- Bore (in.)
- 3.810 in.
- Piston Rings Included
- No
- Engine Stroke Type
- Stock
- Piston Style
- Flat top, with two valve reliefs
- Piston Head Volume (cc)
- +2.90cc
- Wrist Pin Retainers Included
- Yes
- Wrist Pin Included
- Yes
- Pin Diameter (in)
- 0.945 in.
- Piston Ring Thickness
- 1.50mm x 1.50mm x 3.00mm
- Compression Height (in.)
- 1.331 in.
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
