STEEL RING 8 CYL 4150 BORE

Manufacturer: Summit Racing
Part number: 136SN9050025
MPN: 136SN9050025
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

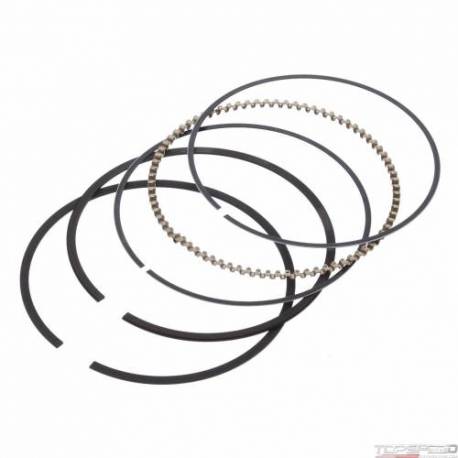

Piston Rings, Gas Nitride Steel Top, Ductile second, Std. Tension oil, File Fit for 4.150 in. bore 1.2mm, 1.2mm, 3.0mm, Set

Summit Racing Pro piston rings are made with premium materials to complement the Summit Racing forged piston lines. These ring sets serve a variety of important roles, including sealing the combustion chamber, improving heat transfer from the piston to the cylinder wall, and minimizing engine oil consumption. Summit Racing Pro piston rings are available in a variety of sizes—order the ring application that is suited to fit your needs.

STEEL RING 8 CYL 4150 BORE - Part number: SUM-136SN9050025 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 136SN9050025 - STEEL RING 8 CYL 4150 BORE engine-piston-ring-set

Data sheet

Quantity
Sold as a set.
Bore (mm)
105.410mm
File Fit
Yes
Gapless
No
Top Ring Included
Yes
Top Ring Thickness
1.2mm
Top Ring Material
Stainless steel
Top Ring Facing Material
Gas nitrided
Second Ring Included
Yes
Second Ring Thickness
1.2mm
Second Ring Material
Ductile iron
Second Ring Facing Material
Phosphate coated
Oil Ring Included
Yes
Oil Ring Thickness
3.0mm
Oil Ring Tension
Standard
Oil Ring Material
Chrome plated carbon steel
Bore (in.)
4.150 in.
Gas Ported
No

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
