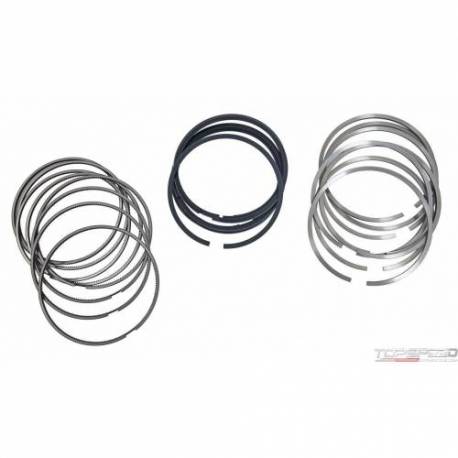

GM 6.6L 32V DURAMAX RINGS .050

Manufacturer: Summit Racing
Part number: 4845D50
MPN: 4845D-50
UPC: 190861234635
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Piston Rings, Complete Set, 4.075 in. Bore, 0.020 in. Oversize, GM, 6.6L Duramax, Set

Our Summit Racing piston rings by Hastings are an incredible value at this price. They feature Hastings Flex-Vent oil control rings to eliminate blowby, and cast-iron second groove rings with a reverse-twist taper face for reduced friction. Sets that include cast iron barrel-face top rings are suitable for stock and mild performance applications, while the sets that include plasma-moly coated top rings are designed for high performance and bracket race applications. These piston rings are available in a variety of sizes and other options—in universal and application-specific models.

GM 6.6L 32V DURAMAX RINGS .050 - Part number: SUM-4845D50 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 4845D-50 - GM 6.6L 32V DURAMAX RINGS .050 engine-piston-ring-set

Data sheet

Quantity
Sold as a set of 8.
Bore (mm)
103.500mm
File Fit
No
Gapless
No
Top Ring Included
Yes
Top Ring Thickness
3.0mm
Top Ring Material
Stainless steel
Top Ring Facing Material
Gas nitrided
Second Ring Included
Yes
Second Ring Thickness
2.0mm
Second Ring Material
Ductile iron
Second Ring Facing Material
Chrome
Oil Ring Included
Yes
Oil Ring Thickness
3.0mm
Oil Ring Tension
Standard
Oil Ring Material
Nitride coated stainless steel
Bore (in.)
4.075 in.
Gas Ported
No
Piston and Ring Oversize (mm)
0.50mm
Piston and Ring Oversize (in.)
0.020 in.

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
