• Out-of-Stock

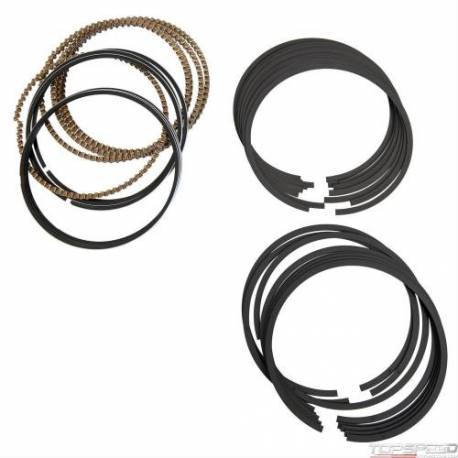

Steel ring set 4.005 in. bore

Manufacturer: Summit Racing
Part number: 136SN9045010
MPN: 136SN9045010
UPC: 190861222700
Availability: Out-of-Stock
£204.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Piston Rings, Gas Nitrided Steel Top, Martensitic Ductile Napier Second, Std. Tension Oil, File Fit for 4.005 in. Bore, 1.2mm, 1.2mm, 3.0mm, Set

Summit Racing Pro LS piston rings are available in numerous sizes, thicknesses, and materials to complement their line of Pro LS forged pistons. These replacement ring sets serve a variety of important roles, including sealing the combustion chamber, improving heat transfer from the piston to the cylinder wall, and regulating engine oil consumption. Order the rings designed to fit your application.

Steel ring set 4.005 in. bore - Part number: SUM-136SN9045010 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 136SN9045010 - Steel ring set 4.005 in. bore engine-piston-ring-set

Data sheet

Notes
Max. radials are 0.151 in. top, 0.153 second.
Quantity
Sold as a set.
Bore (mm)
101.727mm
File Fit
Yes
Gapless
No
Top Ring Included
Yes
Top Ring Thickness
1.2mm
Top Ring Material
Steel
Top Ring Facing Material
Gas nitrided
Second Ring Included
Yes
Second Ring Thickness
1.2mm
Second Ring Material
Ductile iron
Second Ring Facing Material
Martensitic ductile iron
Oil Ring Included
Yes
Oil Ring Thickness
3.0mm
Oil Ring Tension
Standard
Oil Ring Tension Rating
13 lb.
Oil Ring Material
Stainless steel
Bore (in.)
4.005 in.

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
