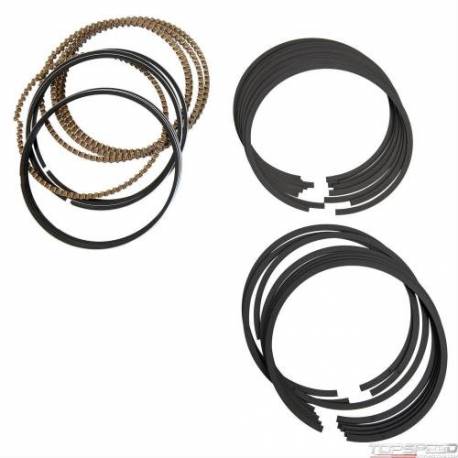

Steel ring set 4.000 in. bore

Manufacturer: Summit Racing

Part number: 136SN9045005

MPN: 136SN9045005

UPC: 190861222694

Availability: Out-of-Stock

£228.95

Tax included

Call to check: 0044 (0) 1933 225 564

Description

Piston Rings, Gas Nitrided Steel Top, Martensitic Ductile Napier Second, Std. Tension Oil, File Fit for 4.000 in. Bore, 1.2mm, 1.2mm, 3.0mm, Set

Summit Racing Pro LS piston rings are available in numerous sizes, thicknesses, and materials to complement their line of Pro LS forged pistons. These replacement ring sets serve a variety of important roles, including sealing the combustion chamber, improving heat transfer from the piston to the cylinder wall, and regulating engine oil consumption. Order the rings designed to fit your application.

Steel ring set 4.000 in. bore - Part number: SUM-136SN9045005 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 136SN9045005 - Steel ring set 4.000 in. bore engine-piston-ring-set

Data sheet

Notes: Max. radials are 0.151 in. top, 0.153 second.
Quantity: Sold as a set.
Bore (in): 4.000 in.
Bore (mm): 101.600mm
File Fit: Yes
Gapless: No
Top Ring Included: Yes
Top Ring Thickness: 1.2mm
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Included: Yes
Second Ring Thickness: 1.2mm
Second Ring Material: Ductile iron
Second Ring Facing Material: Martensitic ductile iron
Oil Ring Included: Yes
Oil Ring Thickness: 3.0mm
Oil Ring Tension: Standard
Oil Ring Tension Rating: 13 lb.
Oil Ring Material: Stainless steel

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
