Out-of-Stock

Steel ring set 3.810 in. bore

Manufacturer: Summit Racing

Part number: 136SM8531035

MPN: 136SM8531035

UPC: 190861222656

Availability: Out-of-Stock

£186.95

Tax included

Call to check: 0044 (0) 1933 225 564

Description

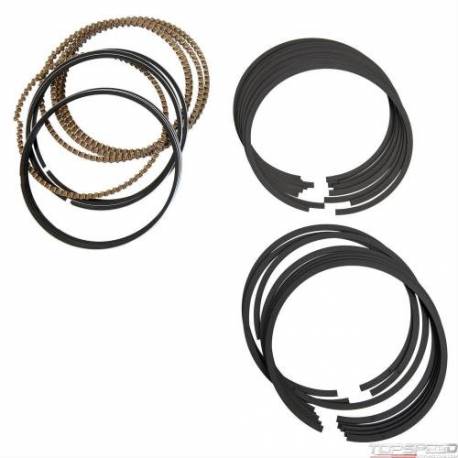

Piston Rings, Plasma Moly Steel Top, Martensitic Ductile Napier Second, Std. Tension Oil, File Fit for 3.810 in. Bore, 1.5mm, 1.5mm, 3.0mm, Set

Summit Racing Pro LS piston rings are available in numerous sizes, thicknesses, and materials to complement their line of Pro LS forged pistons. These replacement ring sets serve a variety of important roles, including sealing the combustion chamber, improving heat transfer from the piston to the cylinder wall, and regulating engine oil consumption. Order the rings designed to fit your application.

Steel ring set 3.810 in. bore - Part number: SUM-136SM8531035 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 136SM8531035 - Steel ring set 3.810 in. bore engine-piston-ring-set

Data sheet

Notes: Max. radials are 0.152 in. top, 0.169 second.
Quantity: Sold as a set.
Bore (in): 3.810 in.
Bore (mm): 96.774mm
File Fit: Yes
Gapless: No
Top Ring Included: Yes
Top Ring Thickness: 1.5mm
Top Ring Material: Steel
Top Ring Facing Material: Plasma-moly
Second Ring Included: Yes
Second Ring Thickness: 1.5mm
Second Ring Material: Ductile iron
Second Ring Facing Material: Martensitic ductile iron
Oil Ring Included: Yes
Oil Ring Thickness: 3.0mm
Oil Ring Tension: Standard
Oil Ring Tension Rating: 13 lb.
Oil Ring Material: Stainless steel

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
