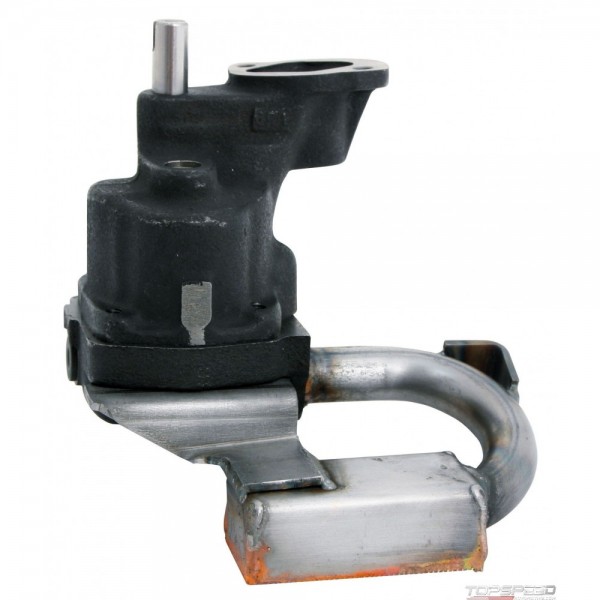

OIL PUMP & PICKUP,SBC HV,W SHAFT

High Volume Racing Oil Pump; .75 in. dia. Inlet;l Billet Steel Gears; For 8.25 in Deep Pans; w/Anti-Cavitation Grooves;

- 3/4in Diameter inlet area reduces cavitation in high RPM applications
- Pump and pickup are built to fit 8-1/4in deep oil pans. Will not work on inRocketin blocks
- Drive shaft and idler shafts are extended to locate in the bottom cover, preventing dynamic shaft deflection
- Pickup orientation ensures proper clearance from pickup to bottom of any Moroso oil pan
-Bottom cover is doweled to properly locate the extended shafts
- A threaded plug blocks off bypass spring and cross-drilled relief hole
- Based off Melling 10555 Oil Pump
