SBC 55-79 PERF OIL PAN
Availability:
Out-of-Stock
Description

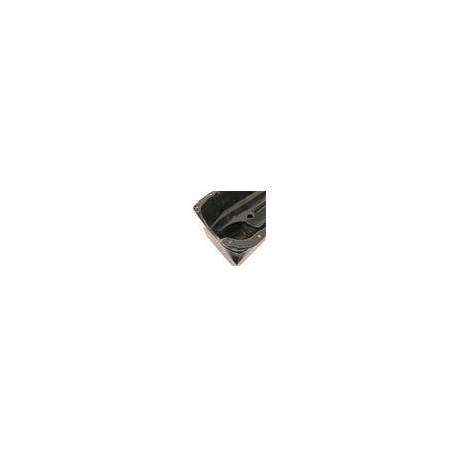

Oil Pan, Steel, Black Zinc, 6 qt., Chevy, Small Block, Each
For a lubrication system that can keep up with your high performance engine, start by bolting on one of our Summit Racing oil pans. These steel pans are built by hand in America with power-supporting features like a directional windage screen, a trap door baffle for improved oil control, and a built-in crankshaft scraper. They also have magnetic drain plugs, 1/4 in. NPT dipstick fittings (dipstick not included), and a paintable, black zinc plated finish for rust prevention. Small Chevy pans are compatible with a 3 7/8 in. stroke, while big Chevy pans work with up to a 4 1/4 in. stroke.
For a lubrication system that can keep up with your high performance engine, start by bolting on one of our Summit Racing oil pans. These steel pans are built by hand in America with power-supporting features like a directional windage screen, a trap door baffle for improved oil control, and a built-in crankshaft scraper. They also have magnetic drain plugs, 1/4 in. NPT dipstick fittings (dipstick not included), and a paintable, black zinc plated finish for rust prevention. Small Chevy pans are compatible with a 3 7/8 in. stroke, while big Chevy pans work with up to a 4 1/4 in. stroke.
SBC 55-79 PERF OIL PAN - Part number: SUM-G3600 - for American Cars - delivery to the UK and the EU
Manufacturer part number: G3600 - SBC 55-79 PERF OIL PAN engine-oil-pan
Data sheet
- Gaskets Included
- No
- Baffled
- Yes
- Hardware Included
- No
- Pickup Included
- No
- Windage Tray Included
- Yes
- Notes
- Does not fit 1962-67 Nova.
- Quantity
- Sold individually.
- Dipstick Included
- No
- Rear Main Seal Style
- 2-piece
- Sump Style
- Wet
- Stroker Clearanced
- Yes
- Maximum Stroke with OE Rod
- 3.875 in.
- Dipstick Provision
- Yes
- Sump Location
- Rear
- Oil Pan Capacity
- 6.00 quarts
- Oil Pan Material
- Steel
- Oil Pan Finish
- Black zinc
- Kicked Out
- No
- Oil Pump Included
- No
- Oil Pump Driveshaft Included
- No
- Crank Scraper Included
- Yes
- Dipstick Location
- Driver side
- Oil Pan Depth (in.)
- 8.000 in.
Package dimensions
Width: 40.00 inch
Height: 20.00 inch
Depth: 10.00 inch
Weight: 40.00 lb
