• Out-of-Stock

CHEVY SB OIL PAN 7QT 86 UP

Manufacturer: Summit Racing
Part number: G36011
MPN: G36011
UPC: 190861066083
Availability: Out-of-Stock
£293.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

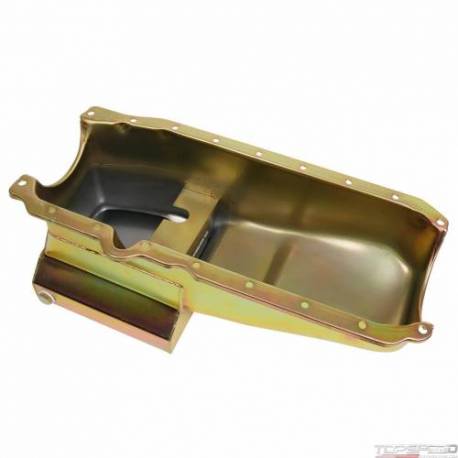

Oil Pan, Steel, Gold Zinc, 7 qt., Chevy, Small Block, Each

Summit Racing economy oil pans bring affordable performance to your engine build. Trap door baffles keep oil under control during hard acceleration and the increased pan capacity keeps your high performance oil system fed properly. Building a stroker? Small block Chevy pans will clear up to 3.75 in. stroke cranks, while the big block Chevy pans will clear strokes up to 4.50 in. Next time you're building on a budget look no further than these Summit Racing economy oil pans.

CHEVY SB OIL PAN 7QT 86 UP - Part number: SUM-G36011 - for American Cars - delivery to the UK and the EU

Manufacturer part number: G36011 - CHEVY SB OIL PAN 7QT 86 UP engine-oil-pan

Data sheet

Gaskets Included
No
Baffled
Yes
Hardware Included
No
Pickup Included
No
Windage Tray Included
No
Quantity
Sold individually.
Dipstick Included
No
Rear Main Seal Style
1-piece
Sump Style
Wet
Stroker Clearanced
No
Maximum Stroke with OE Rod
3.750 in.
Dipstick Provision
Yes
Sump Location
Rear
Oil Pan Capacity
7.00 quarts
Oil Pan Depth (in)
8.250 in.
Oil Pan Material
Steel
Oil Pan Finish
Gold zinc
Kicked Out
Yes
Oil Pump Included
No
Oil Pump Driveshaft Included
No
Crank Scraper Included
No
Kickout Position
Driver and passenger side
Drain Plug Thread Size
1/2-20 in.
Dipstick Location
Passenger side

Package dimensions

Width: 40.00 inch
Height: 20.00 inch
Depth: 10.00 inch
Weight: 40.00 lb
