Description

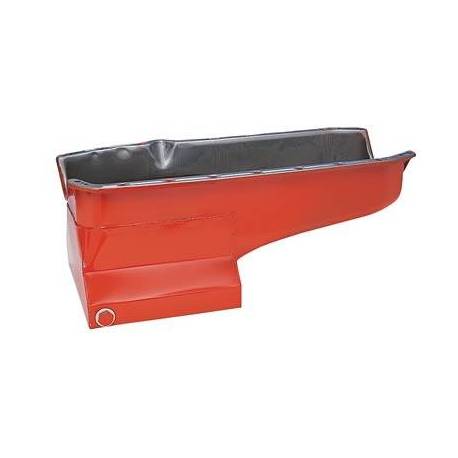

Oil Pan, Steel, Orange, 7 qt., Chevy, Small Block, Each
Summit Racing economy oil pans bring affordable performance to your engine build. Trap door baffles keep oil under control during hard acceleration and the increased pan capacity keeps your high performance oil system fed properly. Building a stroker? Small block Chevy pans will clear up to 3.75 in. stroke cranks, while the big block Chevy pans will clear strokes up to 4.50 in. Next time you're building on a budget look no further than these Summit Racing economy oil pans.
OIL PAN SBC 8 1/4 DEEP PAINTED - Part number: SUM-G3502 - for American Cars - delivery to the UK and the EU
Manufacturer part number: G3502 - OIL PAN SBC 8 1/4 DEEP PAINTED engine-oil-pan
Data sheet
- Gaskets Included
- No
- Baffled
- Yes
- Hardware Included
- No
- Pickup Included
- No
- Windage Tray Included
- No
- Notes
- Use thick front seal gasket set.
- Quantity
- Sold individually.
- Dipstick Included
- No
- Rear Main Seal Style
- 2-piece
- Sump Style
- Wet
- Stroker Clearanced
- No
- Dipstick Provision
- Yes
- Sump Location
- Rear
- Oil Pan Capacity
- 7.00 quarts
- Oil Pan Depth (in)
- 8.250 in.
- Oil Pan Material
- Steel
- Oil Pan Finish
- Orange painted
- Kicked Out
- Yes
- Oil Pump Included
- No
- Oil Pump Driveshaft Included
- No
- Crank Scraper Included
- No
- Kickout Position
- Driver and passenger side
- Drain Plug Thread Size
- 1/2 in.-20
- Dipstick Location
- Driver side
Package dimensions
Width: 40.00 inch
Height: 20.00 inch
Depth: 10.00 inch
Weight: 40.00 lb
