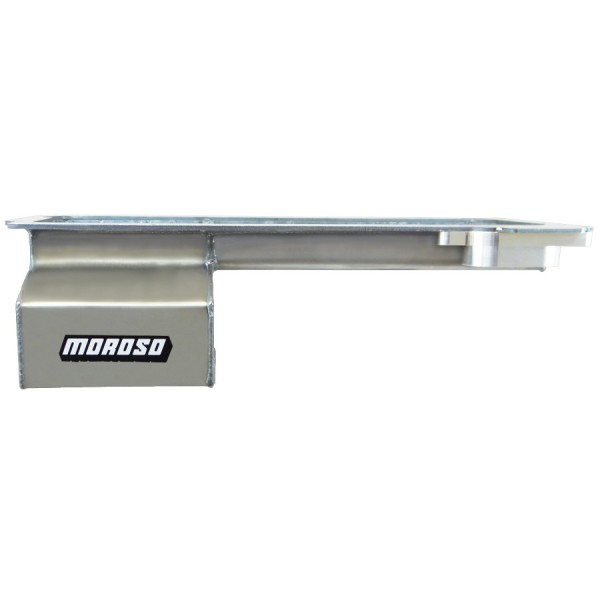

OIL PAN, LS FRONT SUMP SWAP

Oil Pan, Steel, Clear Zinc, GM LS, Front Sump, Road Race Baffled Swap l

CHEVROLET GM LS SERIES, FRONT SUMP SWAP Wet Sump, 6.5 Quart Capacity, 6 Deep, 14 Wide, 6.75 Long, Baffled Engine Application: GM LS Series Fits: LS Engine Conversions that require a Front Sump (Check Measurements)
-Oil pan has a thick precision laser cut steel rail with a clear zinc finish
-Clears 4.25 stroke with most steel rods
-The fabricated steel sump is 5.625 Deep, 14 Wide, and 6.75 Long
-Features a race proven diamond shape four trap door assembly and removable anti-slosh baffle that keeps oil contained in oil pump pick up area during Drifting, Road Racing and Drag Racing
-Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
-Accepts GM Part # 12558253 Windage Tray
-Designed to be used with 2004-2006 Pontiac GTO O.E.M. Oil Pump Pick up, GM Part #12572654
-Two straight 10AN fittings for remote filter installation Includes 10AN Male billet aluminum oil filter adapter has a N.P.T. sensor port
-Dipstick Fitting for required oil pan mounted dipstick
-Magnetic Drain Plug
PART # DESCRIPTION
20146 GM LS, Front Sump Swap, Race Baffled, Fully Fabricated, Steel, Oil Pan REQUIRES THE FOLLOWING GM PARTS TO COMPLETE THE INSTALLATION OF PART NO. 20146 ON ENGINE GM PART DESCRIPTION 12572654 Oil Pump Pick Up 12558253 Windage Tray
