OIL PAN

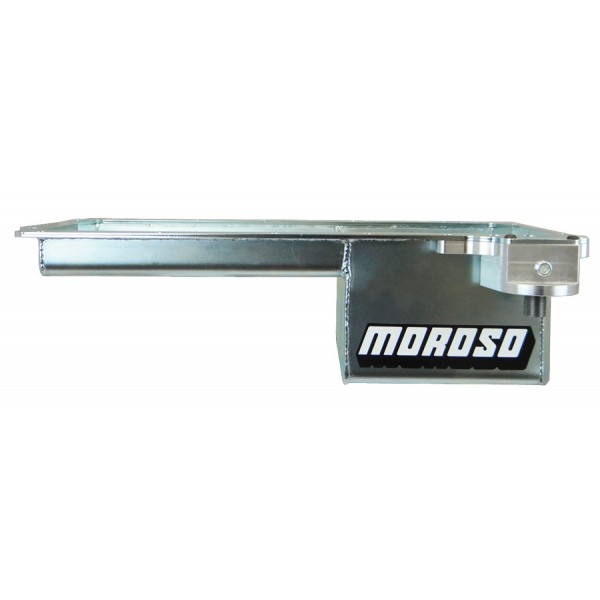

Oil Pan, Steel, Clear Zinc, GM LS, Straight 6in Deep Sump

CHEVROLET GM LS SERIES, REAR SUMP SWAP Wet Sump, 5 Quart Capacity, 6 Deep, 8.5 Wide, 8.375 Long Engine Application: GM LS Series Fits: LS Engine Conversions that require a Rear Sump (Check Measurements)
-Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish
-Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction
-Clears 4.25 stroke with most steel rods
-Front of the oil pan is 1.813 deep to the beginning of the 6 Deep, 8.5 Wide, and 8.375 Long sump
-Removable anti-slosh baffle
-Features a billet aluminum adapter that allows a 13/16 thread Moroso or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
-Accepts MOROSO PART No. 22941 Windage Tray
-Designed to be used with MOROSO PART No. 24050 Oil Pump Pick up
-Magnetic drain plug and uses a stock dipstick
PART # DESCRIPTION
20145 GM LS, Rear Sump, Swap, Fully Fabricated, Steel, Oil Pan PART # RECOMMENDED PICKUP 24050 Stock Oil Pumps or Moroso LS Series High Volume Race Pump No. 22120 AVAILABLE OPTIONS PART # DESCRIPTION 22941 Windage Tray 38541 Oil Pan Mounting Stud Kit 71162 Dust Shield, GM LS 93152 Oil Pan Gasket, GM LS
