OIL PAN

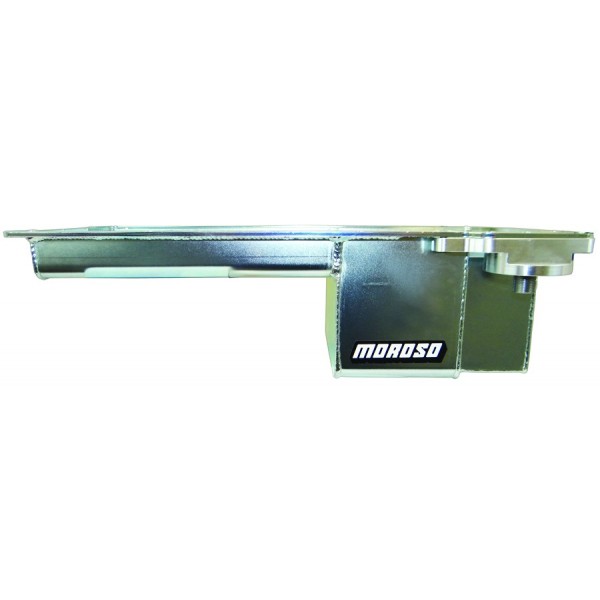

Oil Pan, Steel, Clear Zinc, GM LS, Straight 6in Deep Narrow Sump

GM LS SERIES, REAR SUMP SWAP Wet Sump, 5 Quart Capacity, 6 Deep, 8.295 Wide, 8.375 Long Engine Application: GM LS Series Fits: LS Engine Conversions that require a narrower Rear Sump (Check Measurements) for Block Hugger headers
-Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish
-Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction
-Clears 4.25 stroke with most steel rods
-Front of the oil pan is 1.813 deep to the beginning of the 6 Deep, 8.295 Wide, and 8.375 Long sump
-Anti-climb baffle
-Features a detachable, billet aluminum adapter that allows a 13/16 thread Moroso No. 22462 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
-Accepts Moroso No. 22941 Windage Tray
-Designed to be used with Moroso No. 24050 Oil Pump Pickup
-Magnetic drain plug and uses a stock dipstick
