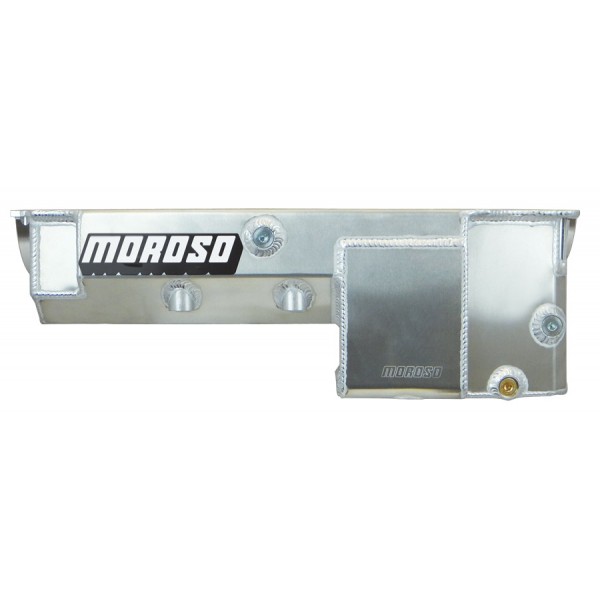

OIL PAN

Pro Eliminator; Drag Race Oil Pan; 6-7 Qt.; Internal Wet Sump Design; Depth-8 in.; Double Kick Out Design; Incl. Magnetic Drain Plug; Chevy Big Block Gen IV; Aluminum;

BBC GEN IV ALUMINIUM OIL PAN, 8.0 DEEP, WITH DIVIDED TRAY CHEVROLET BIG BLOCK Wet Sump, 6 Quart Capacity w/Standard Volume Pump 7 Quart Capacity w/High Volume Pump, 8.00 Deep Engine Application: Mark IV style (except Gen V and Gen VI) Fits: Competition Eliminator, Super Gas, Super comp and Bracket Cars. Installation may require modifications to cross-member; Check dimensions carefully before ordering
-Fully fabricated aluminum with billet end seals to ensure consistent sealing surface to billet front covers and rear main caps
-Utilizes race pan rail bolt pattern, recommended oil pan gasket, Fel Pro Part No. 1863
-Double kick-out design ensures up to 4.75 stroke with aluminum rods, wide main cap clearance and maximum horsepower
-Solid louvered windage tray w/main cap partitions for maximum power and oil control
-Sump design works with Moroso spur gear and gerotor billet oil pumps
-Features two O-ring magnetic drain plugs, two 8AN drain backs, torque converter and alternator notch
-For use with 168-tooth flywheel combination
