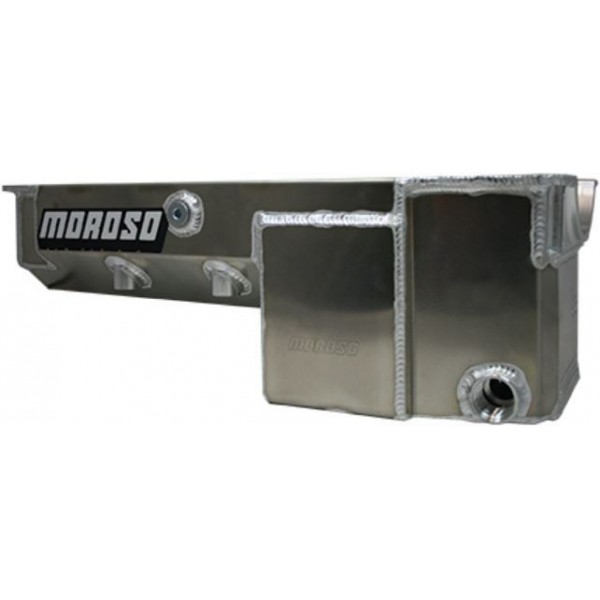

OIL PAN, BBC GEN IV, W/S,W/DIV.TRAY, -16AN EXT. P/U

Pro Eliminator; Drag Race Oil Pan; 6-7 Qt.; Internal Wet Sump Design with External -16AN P/U; Depth-8 in.; Double Kick Out Design; Incl. Magnetic Drain Plug; Chevy Big Block Gen IV; Aluminum;

BBC GEN IV ALUMINIUM OIL PAN, 8 DEEP, DIVIDED TRAY, EXT. P/U CHEVROLET BIG BLOCK Wet Sump, 7 Quart Capacity, 8 Deep Engine Application: Mark IV style (except Gen V and Gen VI) Fits: Competition Eliminator, Super Gas, Super comp and Bracket Cars. Installation may require modifications to cross-member; Check dimensions carefully before ordering
-Designed to be used with a External Oil Pump, oil pan has a sump mounted billet aluminum p/u that accepts a -16AN line
-Fully fabricated aluminum with billet end seals to ensure consistent sealing surface to billet front covers and rear main caps
-Utilizes race pan rail bolt pattern, recommended oil pan gasket, Moroso Part No. 93156
-Double kick-out design ensures up to 4.75 stroke with aluminum rods, wide main cap clearance and maximum horsepower
-Full length solid louvered windage tray w/main cap partitions for maximum power and oil control
-Features two O-ring magnetic drain plugs, two 8AN drain backs, alternator notch
-For use with 168-tooth flywheel combination PART # DESCRIPTION 20486 Oil Pan, BBC Gen IV, Alum. Div. Tray, Ext. 16 AN P/U
