Description
The new Holley EFI Hi-Ram intake provides the ultimate performance with the new GM direct injected Gen V 6.2L LT1 engine. The modular design of this manifold allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper & cross-sectional area to perform in a wide variety of engine configurations. The optional injector bosses on the intake runners allow increased performance potential by using additional injectors along with the factory direct injection. When you look for the pinnacle of performance, price, and quality, look to Holley EFI.

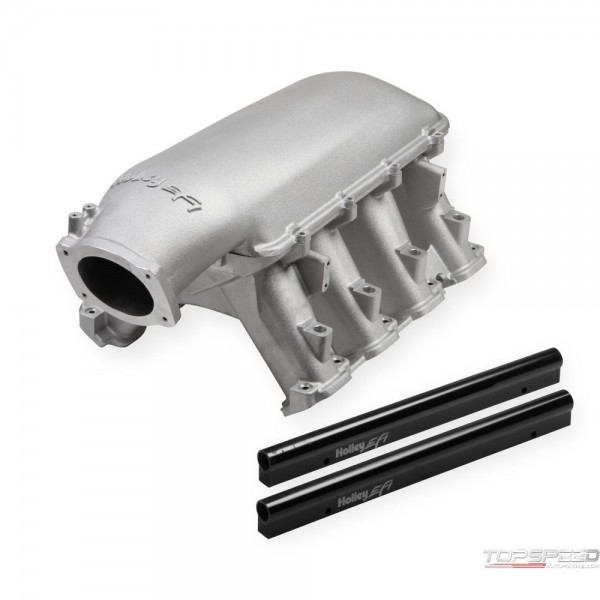

MANIFOLD KIT LT1 HI-RAM WITH PORT INJ 105MM - Part number: HOL-300140 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 300-140 - MANIFOLD KIT LT1 HI-RAM WITH PORT INJ 105MM engine-intake-manifold
Data sheet
- Position
- Upper
- Engine Make/Size
- Chevy LT1
- Emission
- Without EGR
- Finish
- Satin
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Standard
- Construction
- Cast
- RPM Range
- 3500-8000+
- Manifold Type
- Hi-Ram
- Number Of Carbs
- None, For Fuel Injection
Package dimensions
Width: 16.00 inch
Height: 26.50 inch
Depth: 15.00 inch
Weight: 45.76 lb
