Description
The Modular MidÔÇôRise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port MidÔÇôRise 2 x 4 intake Manifold along with a purpose built plenum base Adapter and a Holley 92MM EFI plenum top which converts it into a MidÔÇôRise EFI intake manifold. With a max overall height of only 10.44in., the MidÔÇôRise Manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500ÔÇô6,500 RPM and limited hood clearance. It's perfect for a blowÔÇôthru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum Adapter (PN 300ÔÇô231) will accept all of the popular Holley HiÔÇôRam plenum tops as a foundation for custom induction systems.

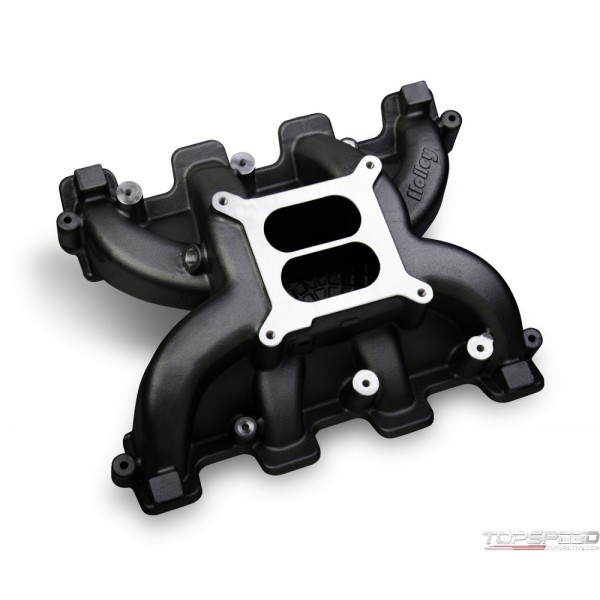

INTAKE MANIFOLD LS3 DUAL PLANE-BLACK - Part number: HOL-300129BK - for American Cars - delivery to the UK and the EU
Manufacturer part number: 300-129BK - INTAKE MANIFOLD LS3 DUAL PLANE-BLACK engine-intake-manifold
Data sheet
- Position
- Upper
- Engine Make/Size
- GM LS3/L92
- Emission
- Without EGR
- Finish
- Black
- Usage
- Street/Hi-Performance
- Fuel System Type
- Carb
- Cylinder Head Type
- LS3/L92
- Construction
- Cast
- RPM Range
- 1500-6500
- Manifold Type
- Dual Plane
- Number Of Carbs
- One
Package dimensions
Width: 14.00 inch
Height: 23.00 inch
Depth: 7.00 inch
Weight: 19.00 lb
