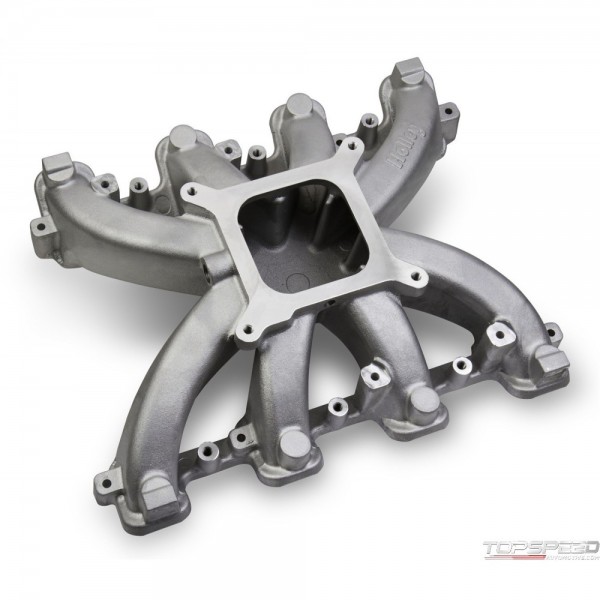

INTAKE MANIFOLD LS3 STREET SINGLE-PLANE CARB

Manufacturer: HOLLEY
Part number: 300131
MPN: 300-131
UPC: 090127687727
Availability:
£697.96
Tax included

Qty: 16, Delivery time: 8 working days

Description

The Modular MidÔÇôRise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port MidÔÇôRise 2 x 4 intake Manifold along with a purpose built plenum base Adapter and a Holley 92MM EFI plenum top which converts it into a MidÔÇôRise EFI intake manifold. With a max overall height of only 10.44in., the MidÔÇôRise Manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500ÔÇô6,500 RPM and limited hood clearance. It's perfect for a blowÔÇôthru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum Adapter (PN 300ÔÇô231) will accept all of the popular Holley HiÔÇôRam plenum tops as a foundation for custom induction systems.

INTAKE MANIFOLD LS3 STREET SINGLE-PLANE CARB - Part number: HOL-300131 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 300-131 - INTAKE MANIFOLD LS3 STREET SINGLE-PLANE CARB engine-intake-manifold

Data sheet

Position
Upper
Engine Make/Size
GM LS3/L92
Emission
Without EGR
Finish
Satin
Usage
Street/Hi-Performance
Flange Type
4150 Square Bore
Fuel System Type
Carb
Cylinder Head Type
LS3/L92
Construction
Cast
RPM Range
2500-7000
Manifold Type
Single Plane
Number Of Carbs
One

Package dimensions

Width: 14.00 inch
Height: 23.00 inch
Depth: 7.00 inch
Weight: 17.00 lb
