LS1/LS2 FAB 102MM INTAKES SATI

Manufacturer: Summit Racing
Part number: 226125
MPN: 226125
UPC: 190861216631
Availability: Out-of-Stock
£602.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

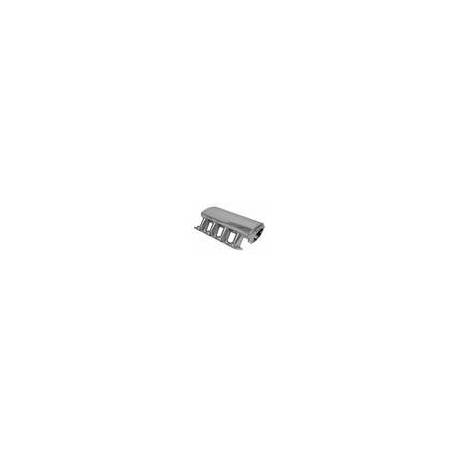

Intake Manifold, Fuel Injected, 102mm Bore Size, Aluminum, Satin, Chevy, LS1, LS2, LS6, Each

A properly fabricated intake manifold can produce significant gains in your engine's performance. Add one of our Summit Racing fabricated intake manifolds to your engine combination to make more power! Each of these stock/OEM deck engine block style intake manifolds is manufactured to exacting standards utilizing the latest CNC machining and fabricating equipment. Simply find and order a perfect fit for your specific make and model vehicle.

LS1/LS2 FAB 102MM INTAKES SATI - Part number: SUM-226125 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 226125 - LS1/LS2 FAB 102MM INTAKES SATI engine-intake-manifold

Data sheet

Quantity
Sold individually.
Basic Operating RPM Range
4,500-8,500
Throttle Body Included
No
Intake Section Included
Complete
Engine Block Style
Stock/OEM standard deck
EGR
No
Cylinder Head Configuration
Cathedral Port LS1/LS2/LS6
Injection Style
Multi-port
Injectors Included
No
Multi-Port Fuel Rails Included
No
Aftermarket Fuel Rail Required
Yes
Throttle Body Bore Size
102mm
Supplemental Bosses Cast-In
No
Supplemental Bosses Machined
Yes
Supplemental Boss Quantity
Four
Runners Included
Yes
Runners Removable
No
Plenum Material
Aluminum
Plenum Finish
Satin
Base Material
Aluminum
Base Finish
Satin

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
