Description

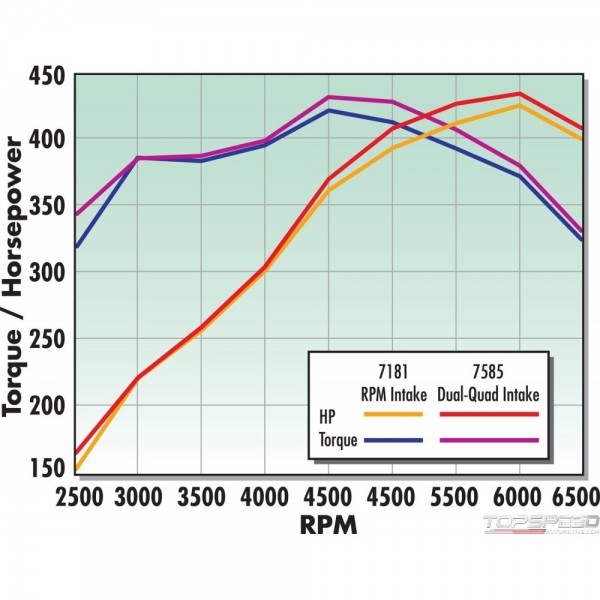

Edelbrock part PN: 7585 RPM Air-Gap Dual-Quad 351W intake manifold is designed for 351W small-block Fords. This intake offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Includes bosses for rear water crossover. Carb center to carb center is 6-7/16in..
Ford:Small-Block Windsor:351W (5.8L)
INTAKE MANIFOLD PERF RPM DUAL QUAD AIR GAP FORD 351W - Part number: EDL-7585 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7585 - INTAKE MANIFOLD PERF RPM DUAL QUAD AIR GAP FORD 351W engine-intake-manifold
Data sheet
- Position
- N/A
- Engine Make/Size
- Ford 5.8L/351W
- Emission
- Without EGR
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Standard
- RPM Range
- 1500-6500
- Number Of Carbs
- Two
- Gasket Or Seal Included
- No
- Grade Type
- Performance
- Center Maximum Height
- 5.370 IN
- CNC Ported
- No
- Front Maximum Height
- 4.930 IN
- Rear Maximum Height
- 5.560 IN
- Single Or Dual Plane Type
- Dual Plane
Package dimensions
Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 22.05 lb
