Description
Edelbrock part PN: 7566 RPM Air-Gap 460 intake manifold is designed for street and high performance 429/460+ c.i.d. Ford V8's with standard or Cobra Jet heads. The RPM Air-Gap 460 incorporates the same race-winning design that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. It also features a larger cross sectional area (3.3 square inches) than the Performer RPM 460 manifold PN: 7166 intake manifold for even more power in high performance and large displacement engines. The carb mount flange accepts both square-bore and spread-bore carbs for Cobra Jet applications. Will not fit 1988 and later models. Note: Early Cobra Jets came with Quadrajets.
Ford:Big-Block:429 (7.0L )-460 (7.5L)
FORD 460 RPM AIR GAP MANIFOLD - Part number: EDL-7566 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7566 - FORD 460 RPM AIR GAP MANIFOLD engine-intake-manifold
Data sheet
- Position
- N/A
- Engine Make/Size
- Ford 429-460
- Emission
- Without EGR
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Standard
- RPM Range
- 1500-6500
- Number Of Carbs
- One
- Gasket Or Seal Included
- No
- Grade Type
- Performance

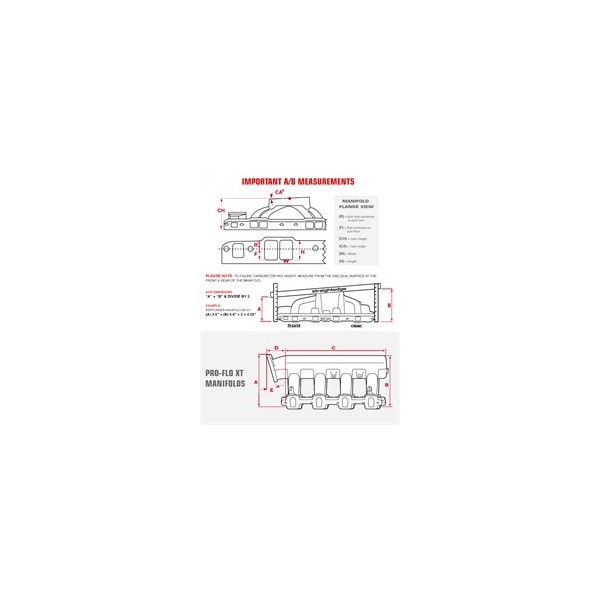

- Center Maximum Height
- 5.480 IN
- CNC Ported
- No
- Front Maximum Height
- 4.810 IN
- Rear Maximum Height
- 6.150 IN
- Single Or Dual Plane Type
- Dual Plane
Package dimensions
Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 25.00 lb
