PERFORMER RPM AIR-GAP B/B CHEVY RECT.

Manufacturer: EDELBROCK
Part number: 7562
MPN: 7562
UPC: 085347075621
Availability:
£652.55
Tax included

Qty: 39, Delivery time: 8 working days

Description

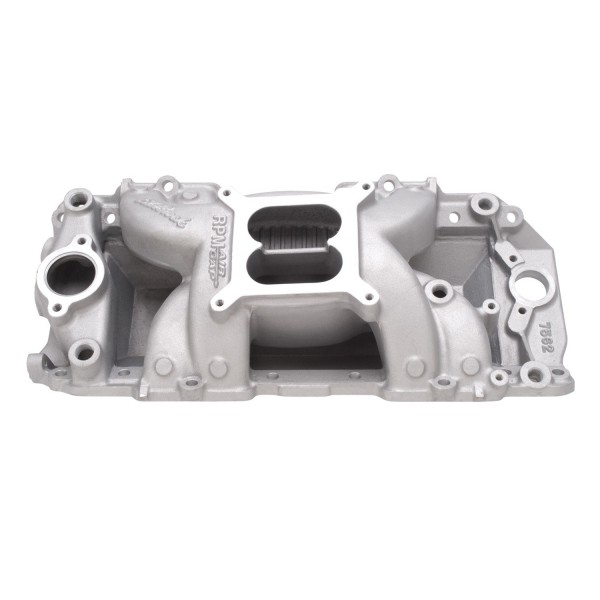

Edelbrock part PN: 7562 RPM Air-Gap 2-R intake manifold is designed for street 396-502 c.i.d. Chevrolet V8's with high-performance rectangular-port heads. The open air space separates the runners from the hot engine oil, and as a result, the air/fuel mixture stays cooler for a denser charge and more power Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street.

Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L)

PERFORMER RPM AIR-GAP B/B CHEVY RECT. - Part number: EDL-7562 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 7562 - PERFORMER RPM AIR-GAP B/B CHEVY RECT. engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Chevy Big Block (396-502)
Emission
Without EGR
Finish
Satin
Material
Aluminum
Usage
Street/Hi-Performance
Cylinder Head Type
Rectangular Port
RPM Range
1500-6500
Number Of Carbs
One
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
5.220 IN
CNC Ported
No
Front Maximum Height
4.450 IN
Rear Maximum Height
6.000 IN
Single Or Dual Plane Type
Dual Plane

Package dimensions

Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 21.95 lb
